Technical datasheet

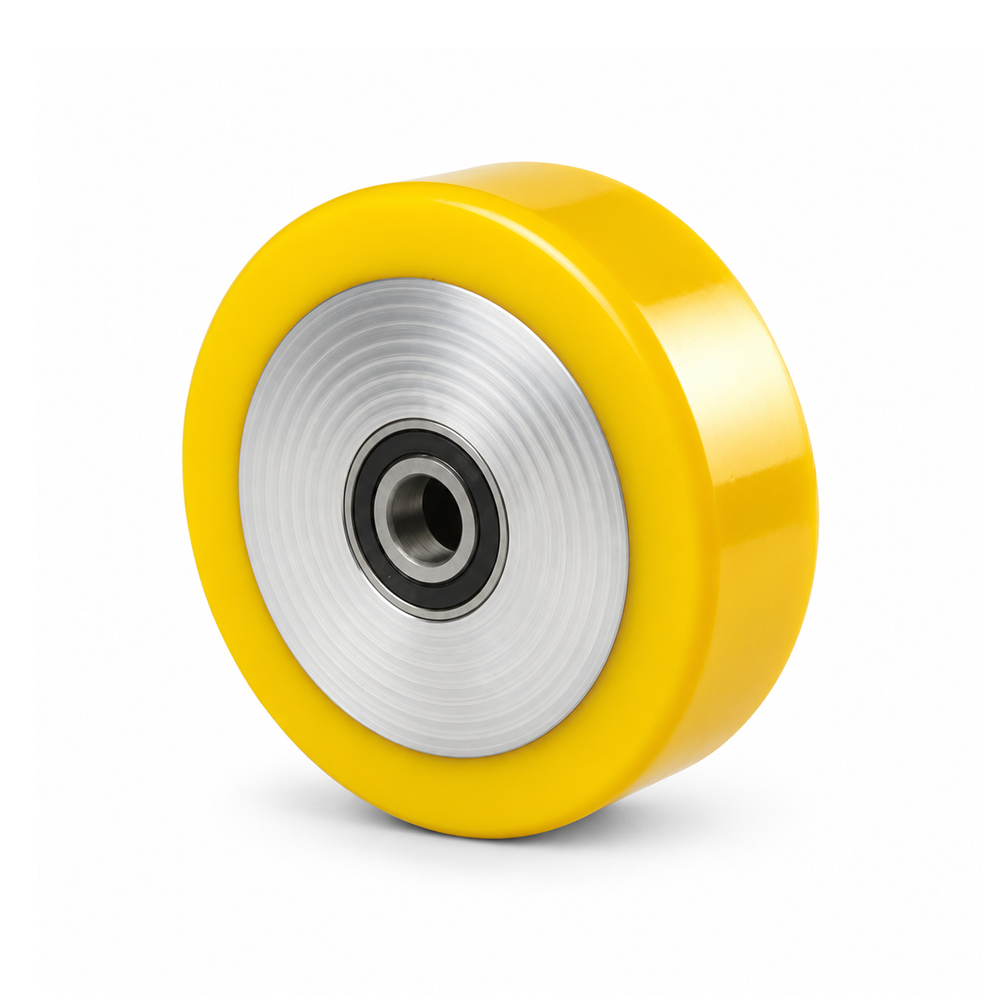

125 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 450 kg, ball bearing, flat & crowned
Item number: 690KFL/125/40/40/20
Variant: 40mm / flat
castors-direct.com
Description
The heavy-duty polyurethane wheel 125 × 40 mm carries 450 kg per wheel and is the ideal choice for medium to heavy industrial applications. The solid aluminium core, turned from solid material, provides a torsion-resistant wheel body with significantly lower dead weight than comparable steel wheels.
Technical data
| Wheel diameter (D) | 125 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Hub length (C) | 46 mm |
| Bore (d1) | 20 mm |
| Load capacity | 450 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
