150 × 50 mm Heavy-duty polyurethane wheel with solid aluminium core – 800 kg, ball bearing, flat & crowned

The heavy-duty polyurethane wheel 150 × 50 mm carries 800 kg per wheel and is designed for demanding heavy-duty applications. The solid solid aluminium core keeps the dead weight low despite the size – a decisive advantage over cast-iron heavy-duty wheels with comparable load capacity.

Solid aluminium core machined from solid material: The wheel body is manufactured by machining solid round aluminium material – not hollow-cast, not formed from sheet metal. This results in a torsionally rigid, dimensionally stable wheel body with a significantly lower dead weight than comparable steel or cast wheels. Ideal where rolling masses should be minimised (handling systems, machine trolleys, ergonomic transport).

Material: Polyurethane tread, wear-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

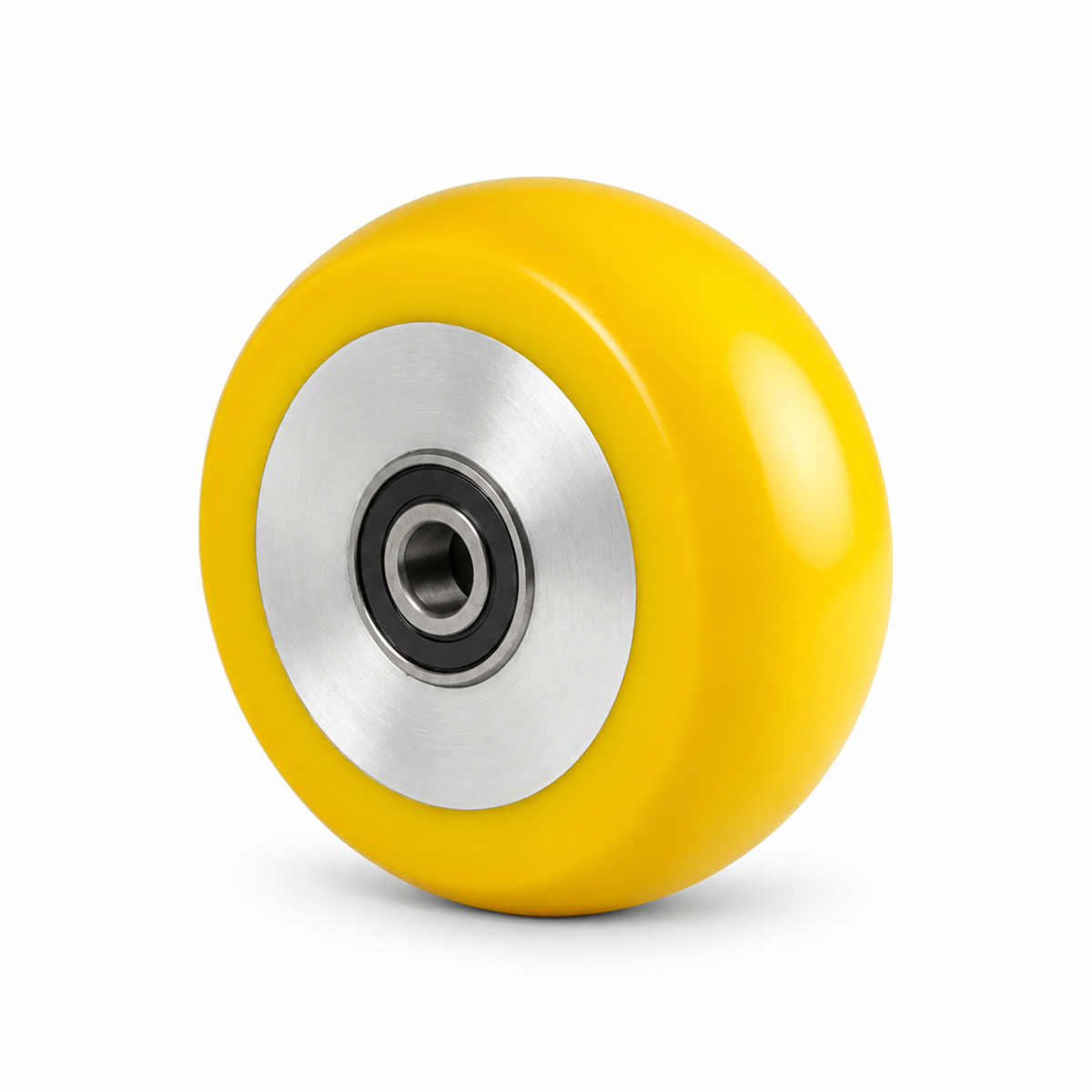

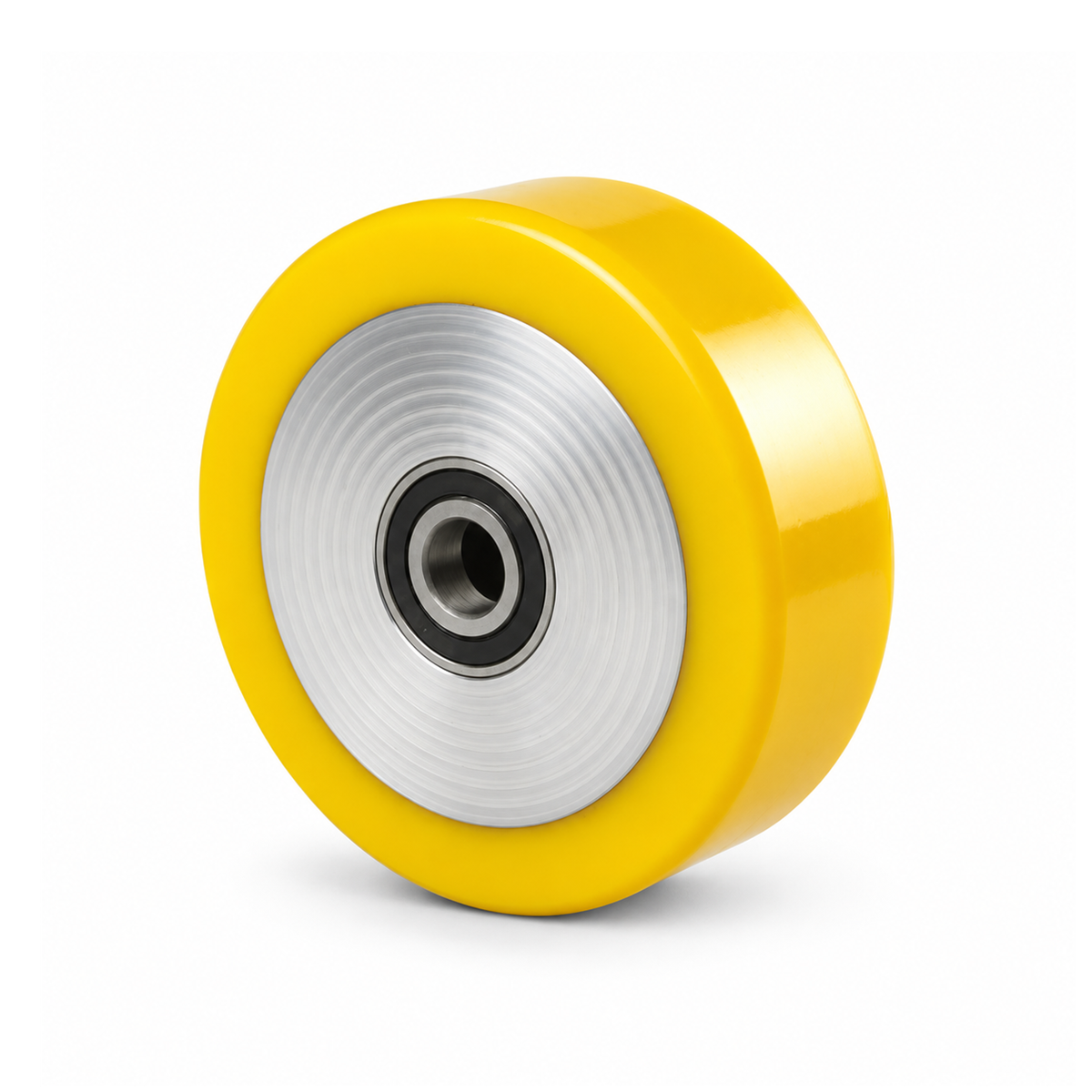

Available with flat or crowned tread (see variant selection).

Technical data

• Wheel diameter: 150 mm
• Wheel width: 50 mm
• Axle bore / hole: Ø 20 mm
• Hub length: 50 mm
• Load capacity: 800 kg per wheel
• Tread: polyurethane, yellow, approx. 92° Shore A, non-marking
• Wheel body: solid aluminium core, machined from solid material
• Bearing: ball bearing (low-maintenance)
• Temperature range: −20 °C to +80 °C

Typical areas of use: heavy-duty transport trolleys, industrial handling, machine and plant engineering, logistics and warehousing, special chassis.
