Technical datasheet

150 × 50 mm Heavy-duty polyurethane wheel with solid aluminium core – 800 kg, ball bearing, flat & crowned

Item number: 690KFL/150/50/50/20

Variant: flat

Description

The heavy-duty polyurethane wheel 150 × 50 mm carries 800 kg per wheel and is designed for demanding heavy-duty applications. The solid solid aluminium core keeps the dead weight low despite the size – a decisive advantage over cast-iron heavy-duty wheels with comparable load capacity.

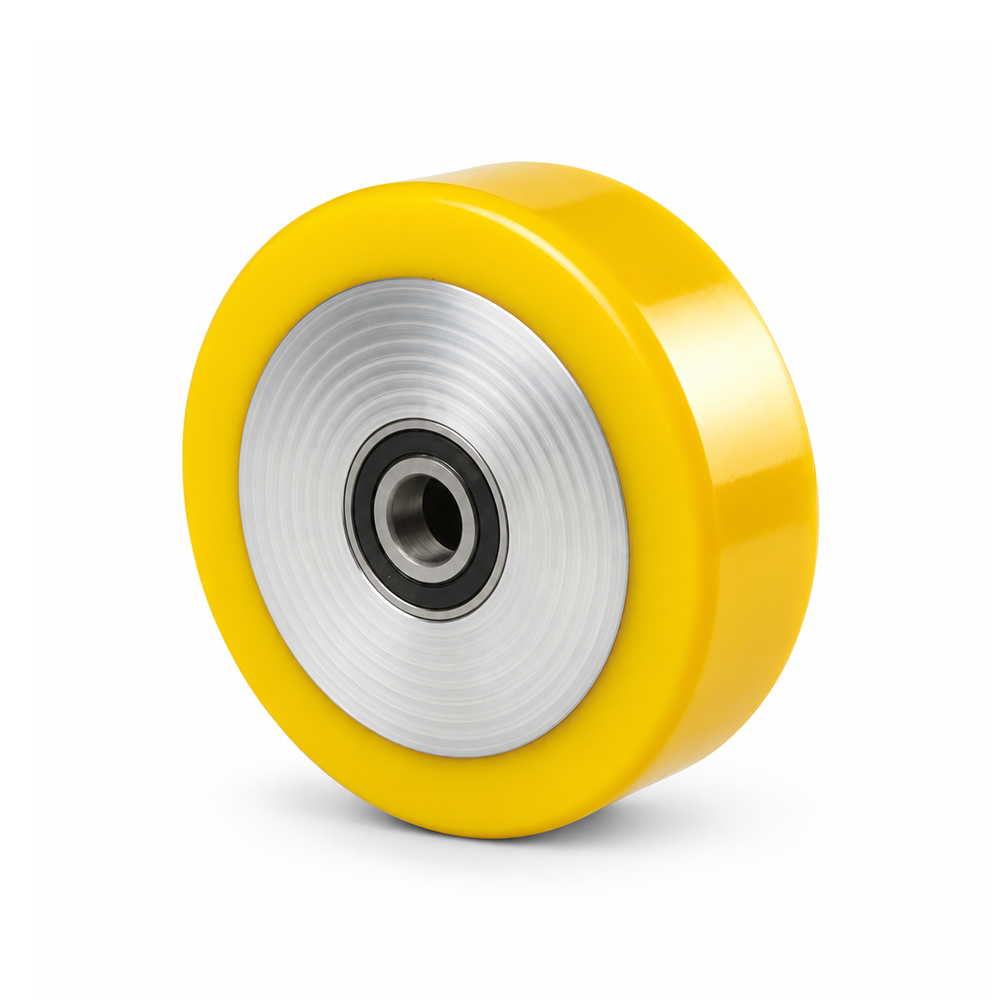

150 × 50 mm Polyurethane wheel with solid aluminium core, flat – series 690

Technical data

Wheel diameter (D) 150 mm
Wheel width (B) 50 mm
Hub length (C) 50 mm
Bore (d1) 20 mm
Load capacity 800 kg
Tread hardness 92 Shore A
Temperature -20 °C to +80 °C
Material Polyurethane (PU), Aluminium
Non-marking Yes
Heat-resistant No

Manufacturer

rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
