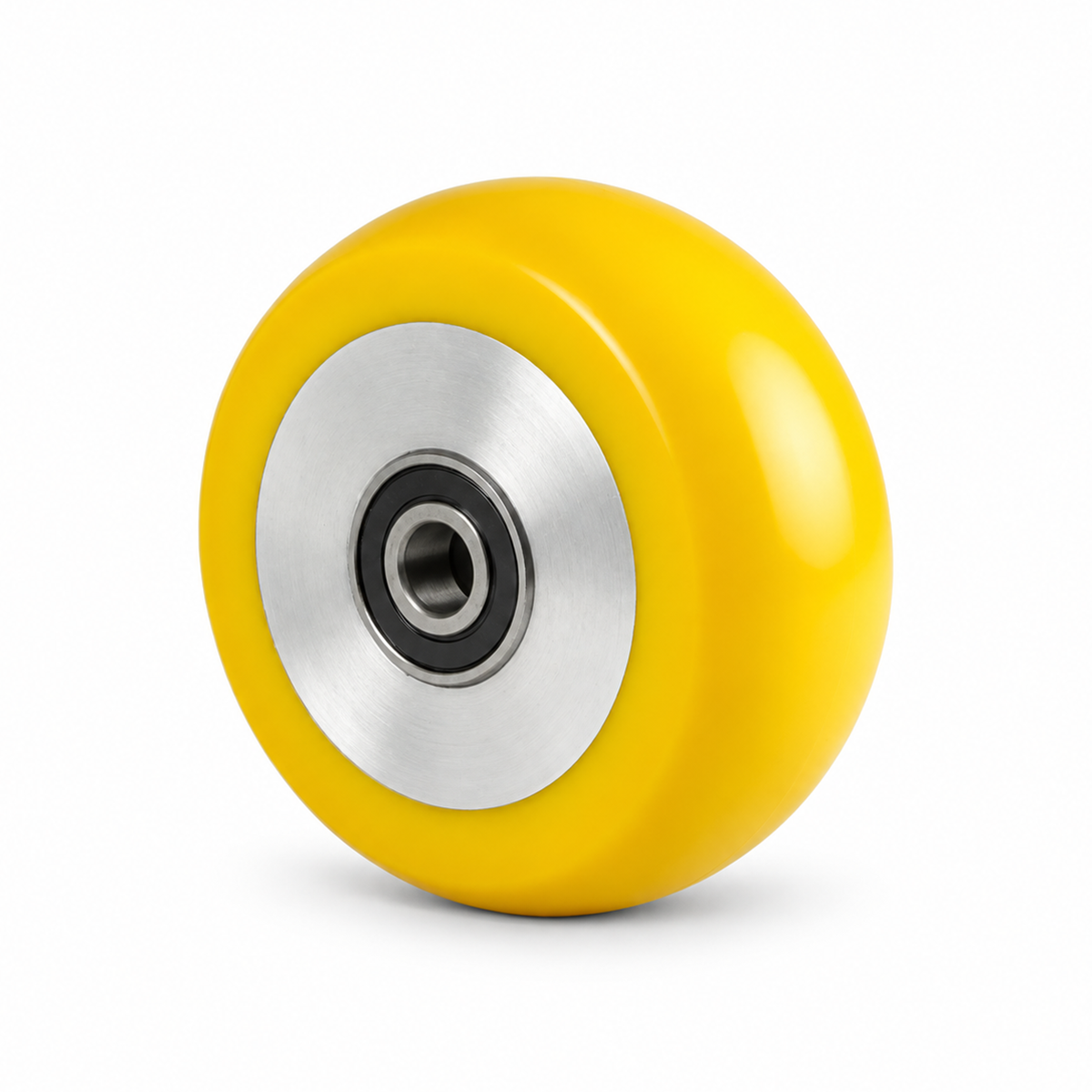

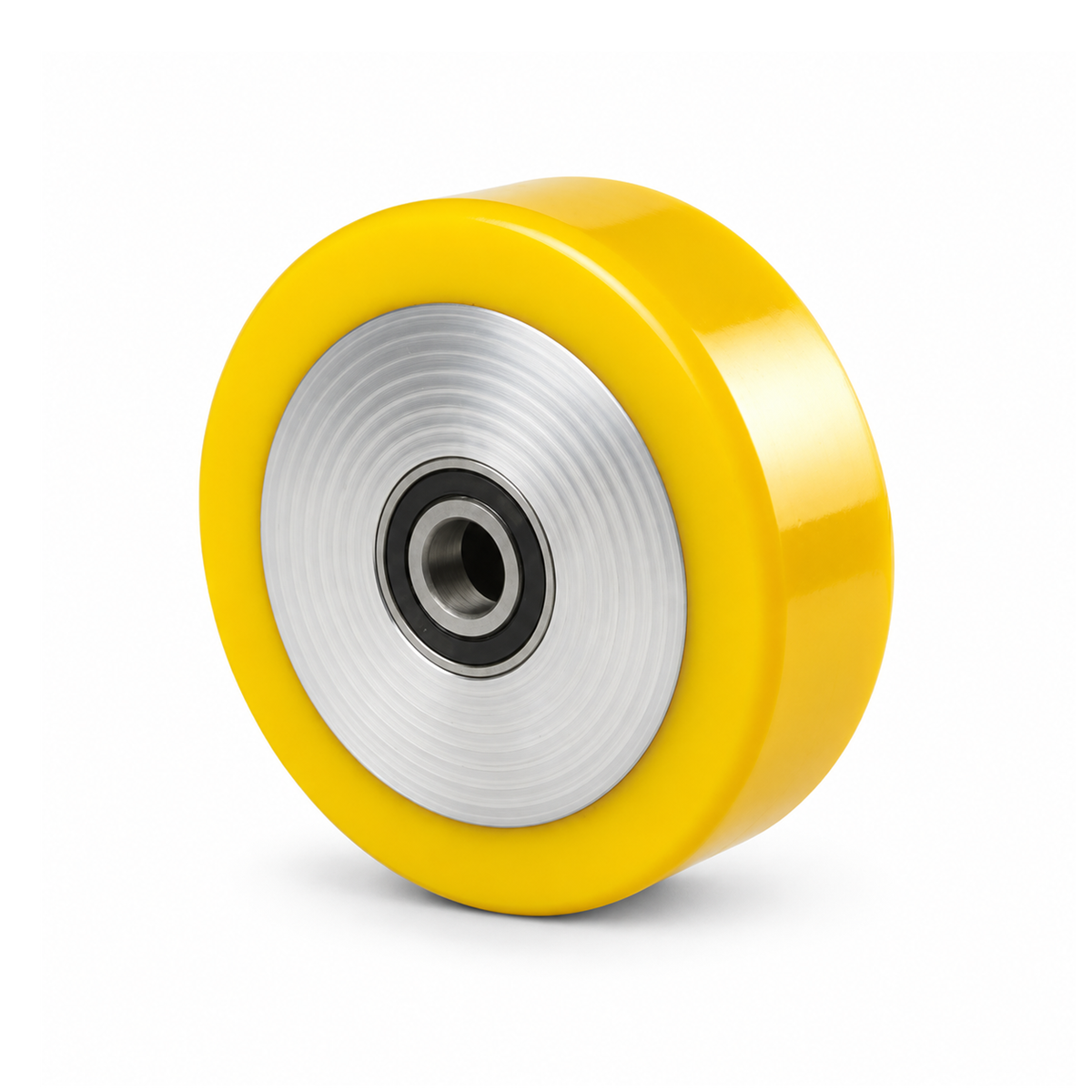

200 × 50 mm Heavy-Duty Polyurethane Wheel with Solid Aluminum Core – 1000 kg, Ball Bearing, Flat & Crowned

The heavy-duty polyurethane wheel 200 × 50 mm is designed for load capacities of up to 1000 kg per wheel. The solid aluminum core, machined from solid material, combines maximum rigidity with significantly lower self-weight than cast iron heavy-duty wheels of the same load capacity class – an important factor for manually moved carts and ergonomic handling.

Solid aluminum core machined from solid material: The wheel body is manufactured by machining solid aluminum round stock – not hollow cast, not formed from sheet metal. This results in a torsionally rigid, dimensionally stable wheel body with significantly lower self-weight than comparable steel or cast wheels. Ideal where rolling masses are to be minimized (handling systems, machine carts, ergonomic transport).

Material: Polyurethane tread, abrasion-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

Available with bore 20, 25 or 30 mm as well as flat or crowned tread (see variant selection).

Technical Data

• Wheel diameter: 200 mm
• Wheel width: 50 mm
• Axle bore / bore: Ø 20 / 25 / 30 (selectable) mm
• Hub length: 50 mm
• Load capacity: 1000 kg per wheel
• Tread: Polyurethane, yellow, approx. 92° Shore A, non-marking
• Wheel body: Solid aluminum core, machined from solid material
• Bearing: Deep groove ball bearing (low maintenance)
• Temperature range: −20 °C to +80 °C

Typical applications: Heavy-duty transport carts, heavy-duty swivel castors, industrial and plant engineering, logistics, special chassis, heavy tool carriers.
