Technisches Datenblatt

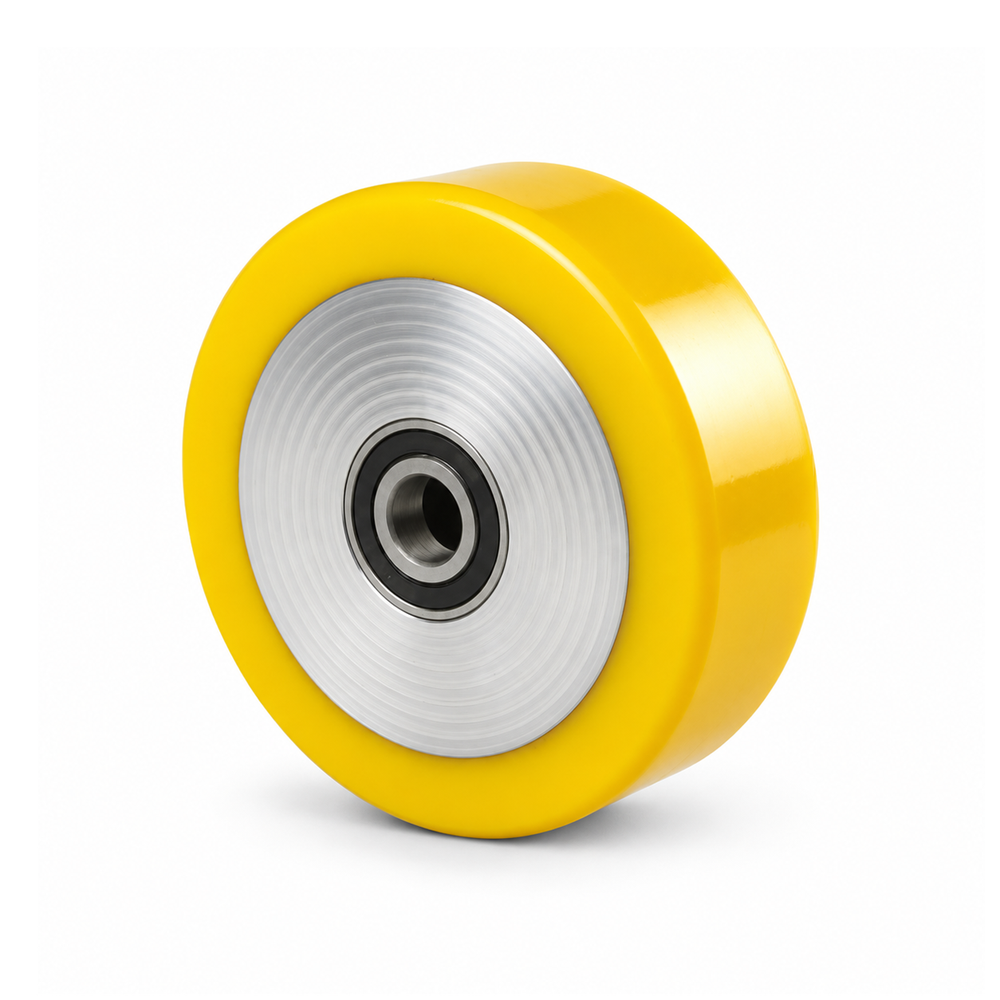

200 × 50 mm Heavy-Duty Polyurethane Wheel with Solid Aluminum Core – 1000 kg, Ball Bearing, Flat & Crowned
Artikelnummer: 690KFL/200/50/50/20
Ausführung: 20mm / flat
castors-direct.com
Beschreibung
The heavy-duty polyurethane wheel 200 × 50 mm is designed for load capacities of up to 1000 kg per wheel. The solid aluminum core, machined from solid material, combines maximum rigidity with significantly lower self-weight than cast iron heavy-duty wheels of the same load capacity class – an important factor for manually moved carts and ergonomic handling.Solid aluminum core machined from solid material: The whee...
Technische Daten
| Rad-Ø | 200 mm |
|---|---|
| Radbreite | 50 mm |
| Nabenlänge | 50 mm |
| Tragfähigkeit | 1000 kg |
| Temperaturbereich | '-20 °C up to +80 °C |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 20 mm / 25 mm / 30 mm |
| Nabenlaenge | 50.0 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 200 mm |
| Tragkraft | 1000.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
