Technical datasheet

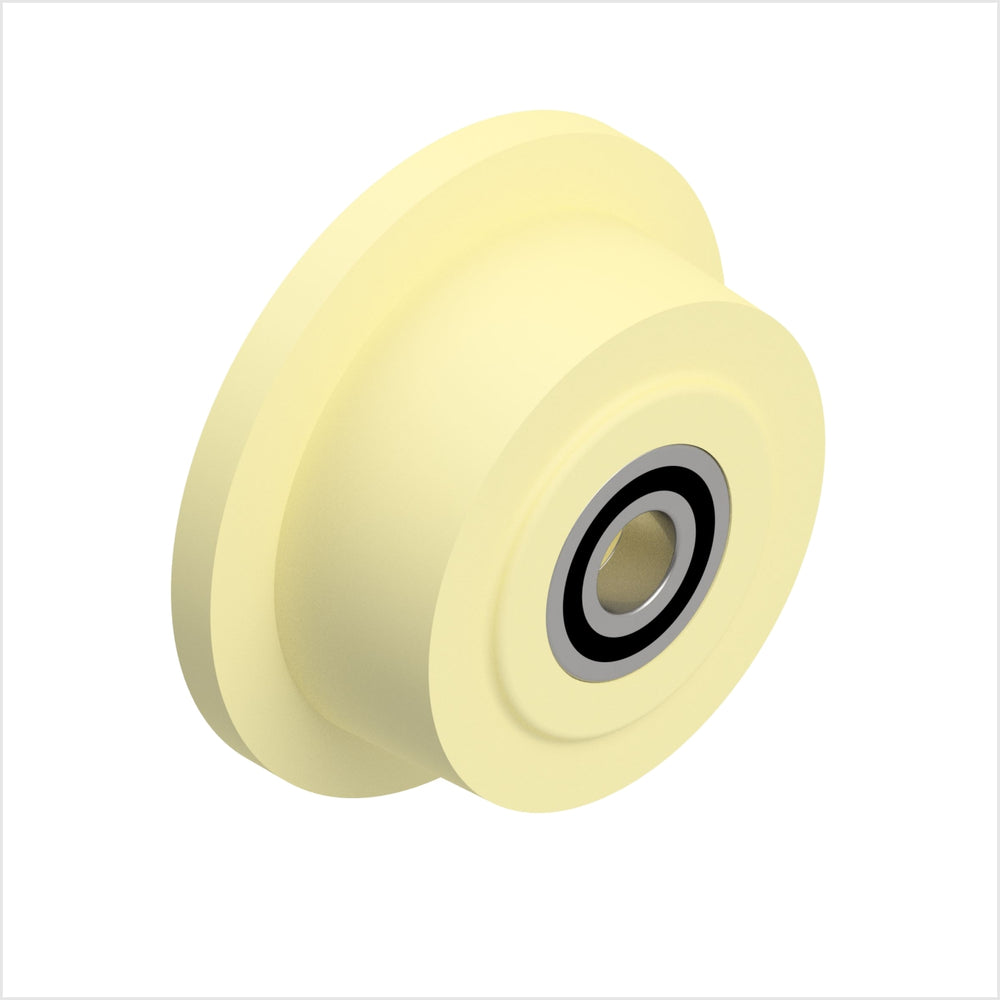

Flanged Wheel | 200 x 80 mm | Polyamide 6G | High load capacity with low dead weight
Item number: SPR-2505K/200/230/80/90
Variant: with ball bearing
Description
The 200 × 80 mm flanged wheel made of cast polyamide 6G (PA6G) is the economical and lightweight alternative to steel wheels for rail-guided systems. It is suitable for overhead cranes, suspended conveyors, automated storage and retrieval systems, rail-mounted trolleys, and all applications where precise guidance on flat or profiled rails is required.
Technical data
| Wheel diameter (D) | 200 mm |
|---|---|
| Spurkranz-Ø (D2) | 230 mm |
| Wheel width (B) | 80 mm |
| Laufbreite (T) | 60 mm |
| Load capacity | 2500 kg |
| Axle hole (d1) | 40 mm |
| Hub length (C) | 90 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +80 °C |
| Material | Polyamid 6G |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Exclusively for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the wheel firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear, and damage. Replace damaged wheels immediately.
