50 × 20 mm Polyurethane wheel with solid aluminium core – 120 kg, ball bearing, flat & crowned

The polyurethane wheel 50 × 20 mm is a lightweight, compact industrial wheel for transport trolleys, equipment and fixed installations. With a load capacity of 120 kg, bore 8 mm and a solid aluminium core, it combines low own weight with high load-bearing capacity.

Solid aluminium core machined from solid material: The wheel body is manufactured by machining solid aluminium round material – not hollow-cast, not formed from sheet metal. This results in a torsionally rigid, dimensionally stable wheel body with a significantly lower own weight than comparable steel or cast wheels. Ideal where rolling masses need to be minimised (handling systems, machine trolleys, ergonomic transport).

Material: Polyurethane tread, abrasion-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

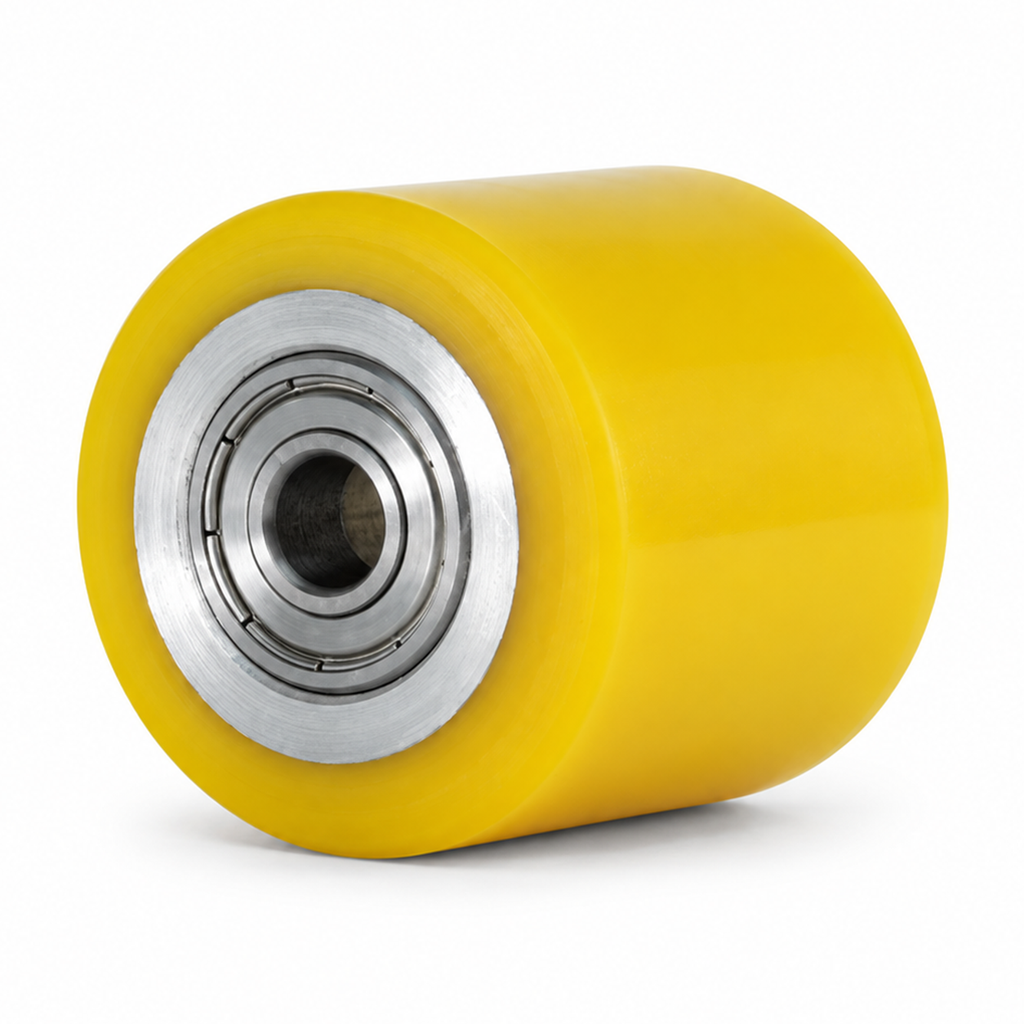

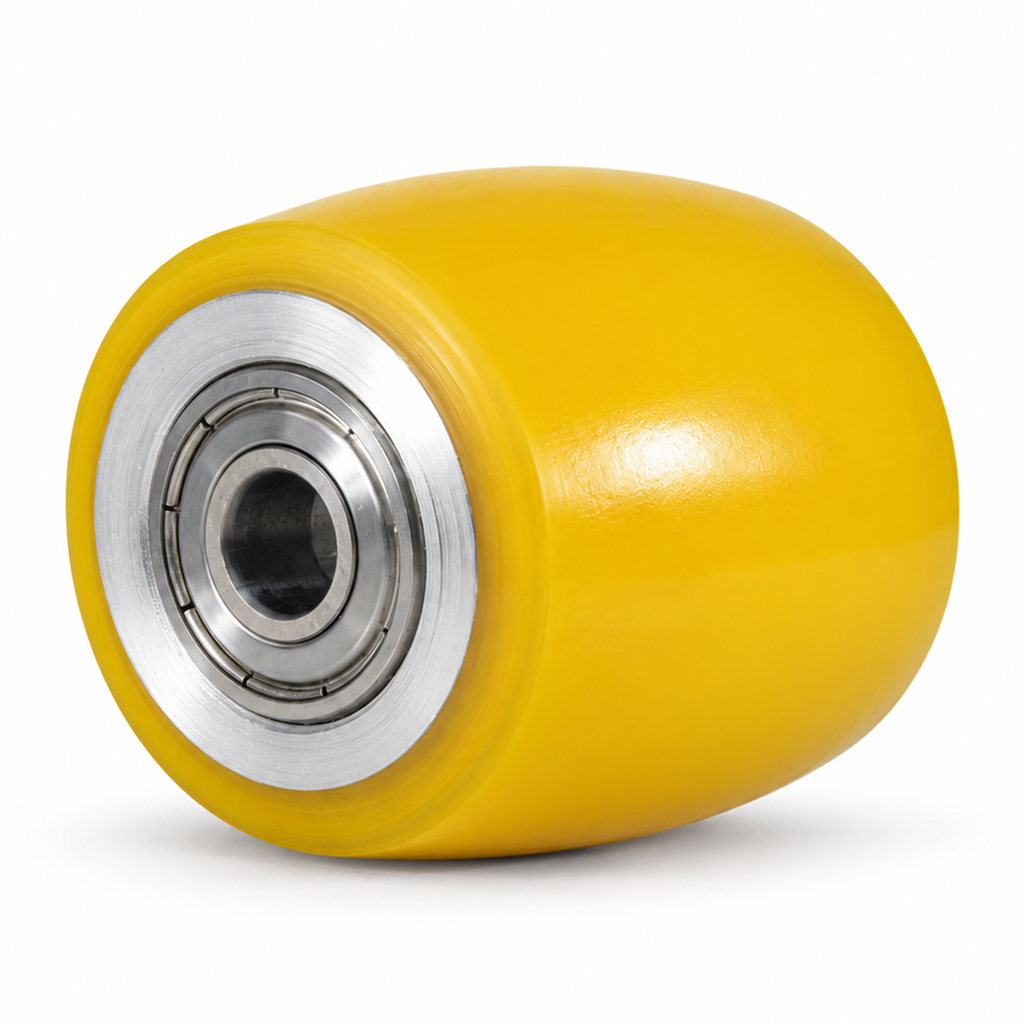

Available with a flat or crowned tread (see variant selection).

Technical data

• Wheel diameter: 50 mm
• Wheel width: 20 mm
• Axle bore / bore: Ø 8 mm
• Hub length: 20 mm
• Load capacity: 120 kg per wheel
• Tread: polyurethane, yellow, approx. 92° Shore A, non-marking
• Wheel body: solid aluminium core, machined from solid material
• Bearing: deep-groove ball bearing (low-maintenance)
• Temperature range: −20 °C to +80 °C

Typical areas of use: transport trolleys, equipment and apparatus construction, light machine trolleys, workshop fittings, special-purpose machinery.
