Technical datasheet

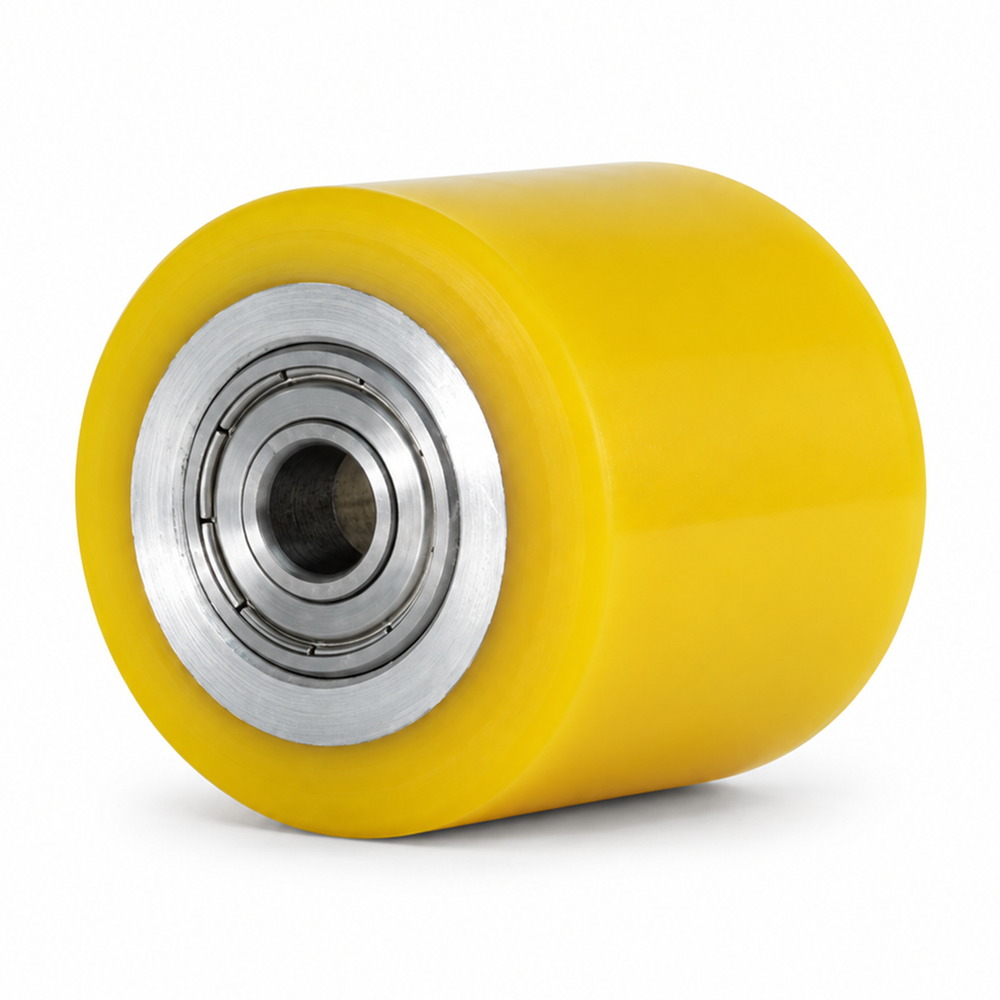

50 × 20 mm Polyurethane wheel with solid aluminium core – 120 kg, ball bearing, flat & crowned
Item number: 690KFL/050/20/20/08
Variant: flat
castors-direct.com
Description
The polyurethane wheel 50 × 20 mm is a lightweight, compact industrial wheel for transport trolleys, equipment and fixed installations. With a load capacity of 120 kg, bore 8 mm and a solid aluminium core, it combines low own weight with high load-bearing capacity.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 20 mm |
| Hub length (C) | 20 mm |
| Bore (d1) | 8 mm |
| Load capacity | 120 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
