65 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 250 kg, ball bearing, flat & crowned

The heavy-duty polyurethane wheel 65 × 40 mm carries 250 kg per wheel and provides a quiet, floor-friendly tread – ideal for medium-duty industrial and workshop applications where load capacity and low dead weight are equally important.

Solid aluminium core machined from solid material: The wheel body is produced from solid aluminium bar stock by machining – not hollow cast, not formed from sheet metal. This results in a torsion-resistant, dimensionally stable wheel body with significantly lower dead weight than comparable steel or cast wheels. Ideal wherever rolling mass needs to be minimised (handling systems, machine trolleys, ergonomic transport).

Material: polyurethane tread, abrasion-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

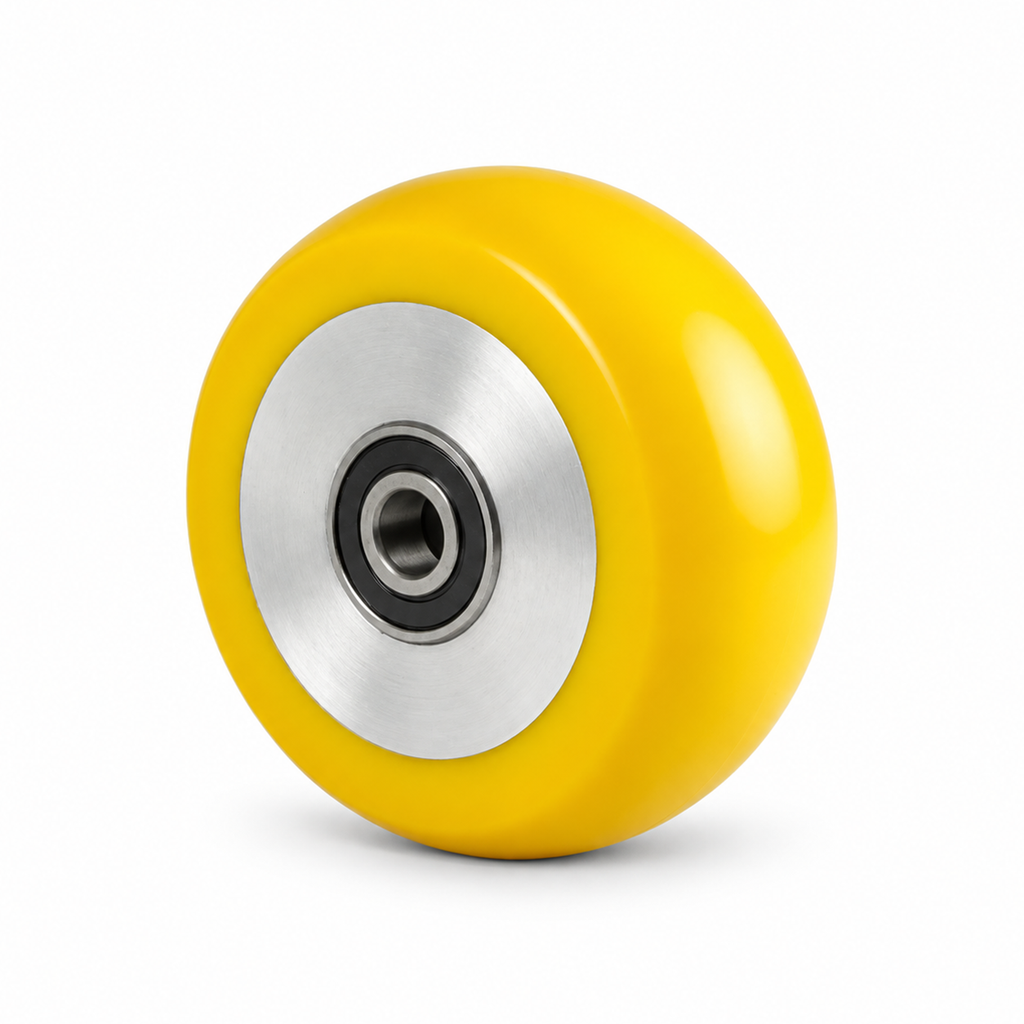

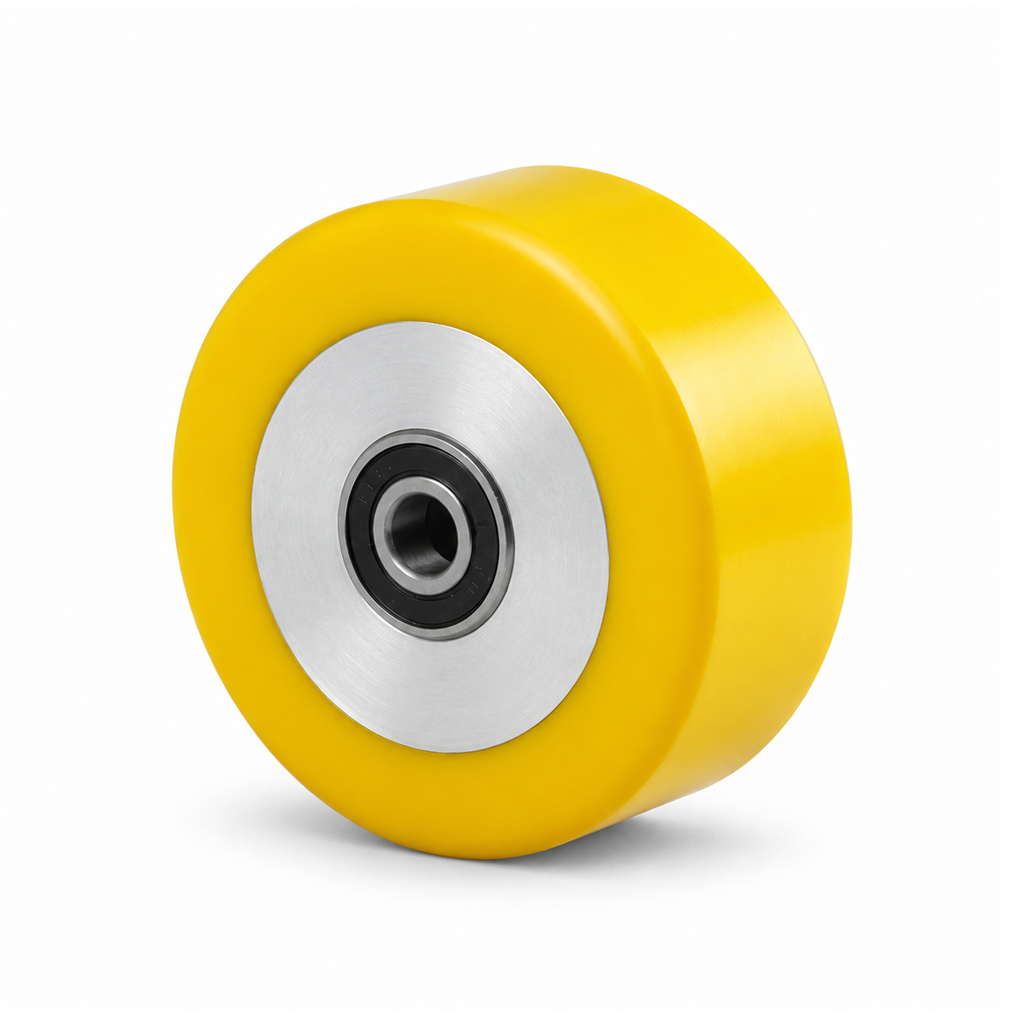

Available with flat or crowned tread (see variant selection).

Technical data

• Wheel diameter: 65 mm
• Wheel width: 40 mm
• Axle bore / hole: Ø 12 mm
• Hub length: 40 mm
• Load capacity: 250 kg per wheel
• Tread: polyurethane, yellow, approx. 92° Shore A, non-marking
• Wheel body: solid aluminium core, machined from solid material
• Bearing: ball bearing (low-maintenance)
• Temperature range: −20 °C to +80 °C

Typical applications: machine and equipment trolleys, workshop trolleys, transport equipment with higher load capacity, plant engineering, ergonomic handling solutions.
