Technical datasheet

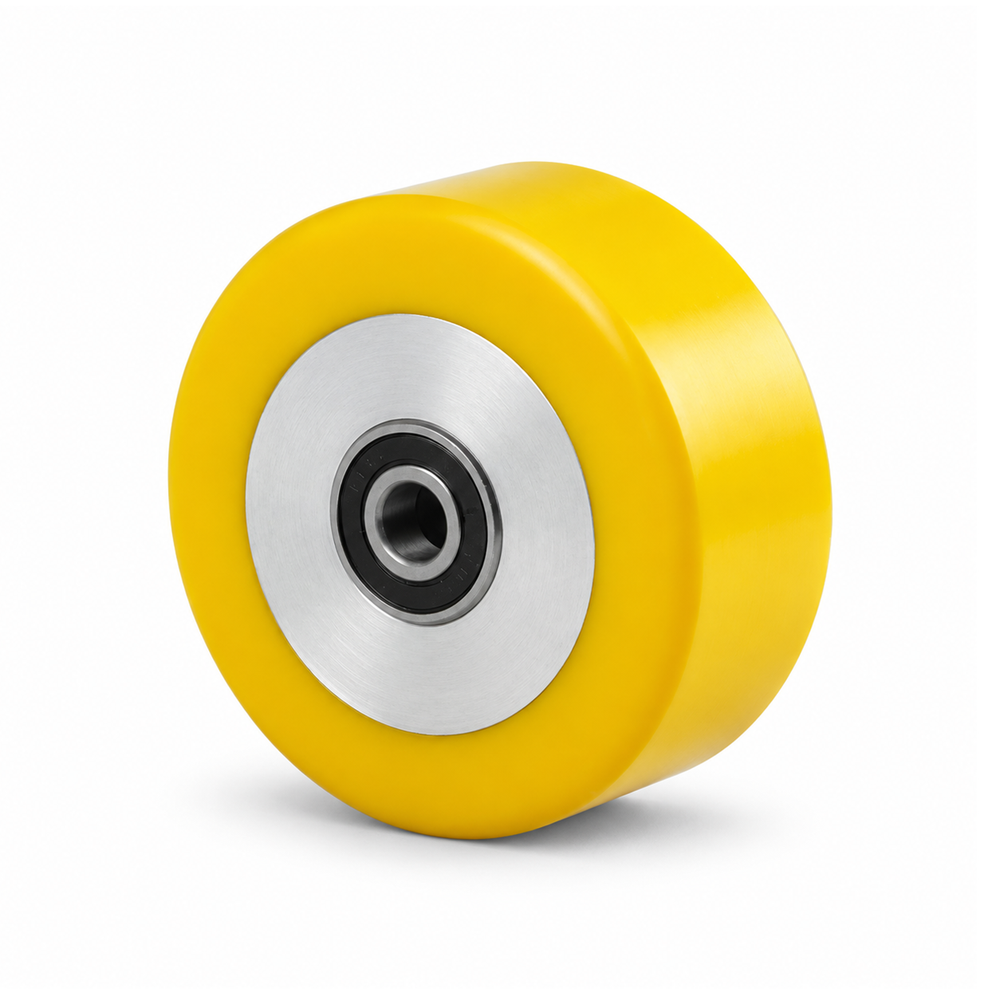

65 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 250 kg, ball bearing, flat & crowned
Item number: 690KFL/065/40/40/12
Variant: flat
castors-direct.com
Description
The heavy-duty polyurethane wheel 65 × 40 mm carries 250 kg per wheel and provides a quiet, floor-friendly tread – ideal for medium-duty industrial and workshop applications where load capacity and low dead weight are equally important.
Technical data
| Wheel diameter (D) | 65 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Hub length (C) | 40 mm |
| Bore (d1) | 12 mm |
| Load capacity | 250 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
