80 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 300 kg, ball bearing, flat & crowned

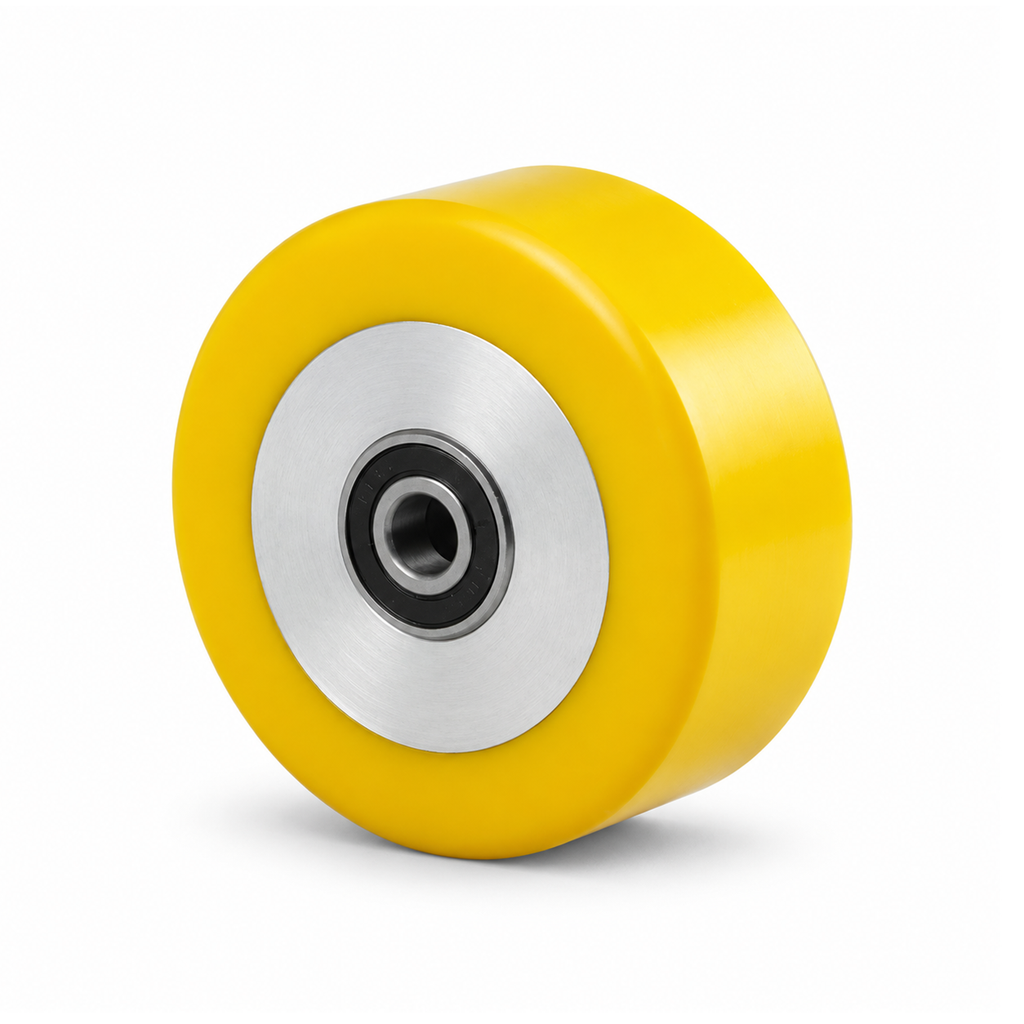

80 × 40 mm Polyurethane wheel with solid aluminium core, flat – series 690
46,47 €
incl. VAT
37,03 €
excl. VAT
Available immediately  = 92 in stock
approx. 1–3 days
Delivery is made from stock.
Wheel shape
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
80 mm
Wheel width (B)
40 mm
Hub length (C)
40 mm
Bore (d1)
12 mm
Load capacity
300 kg
Tread hardness
92 Shore A
Temperature
-20 °C to +80 °C
Material
Polyurethane (PU), Aluminium
Non-marking
Yes

The heavy-duty polyurethane wheel 80 × 40 mm carries 300 kg per wheel with an outside diameter of 80 mm and a wide 40-mm-Lauffläche. A solid aluminium core and ball bearing make this an easy-running, torsionally rigid industrial wheel for demanding applications.

Solid aluminium core machined from solid material: The wheel body is machined from solid aluminium round stock – not hollow-cast, not formed from sheet metal. This results in a torsionally rigid, dimensionally stable wheel body with significantly lower dead weight than comparable steel or cast wheels. Ideal where rolling mass should be minimised (handling systems, machine trolleys, ergonomic transport).

Material: Polyurethane tread, abrasion-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

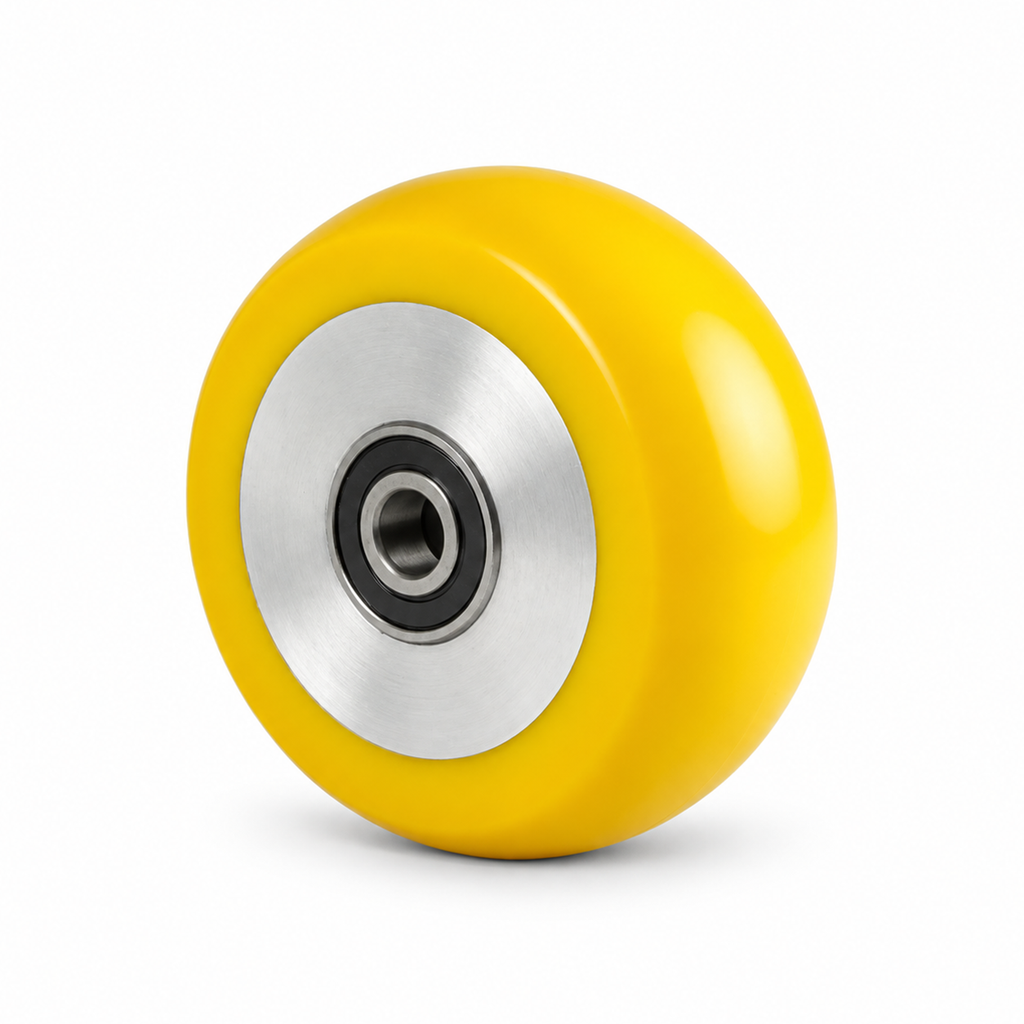

Available with a flat or crowned tread (see variant selection).

Technical data

  • Wheel diameter: 80 mm
  • Wheel width: 40 mm
  • Axle bore / hole: Ø 12 mm
  • Hub length: 40 mm
  • Load capacity: 300 kg per wheel
  • Tread: polyurethane, yellow, approx. 92° Shore A, non-marking
  • Wheel body: solid aluminium core, machined from solid material
  • Bearing: ball bearing (low-maintenance)
  • Temperature range: −20 °C to +80 °C

Typical applications: Heavy machine trolleys, plant and equipment construction, transport equipment in industrial environments, toolmaking, special-purpose machine construction.
