Technical datasheet

80 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 300 kg, ball bearing, flat & crowned

Item number: 690KFL/080/40/40/12

Variant: flat

Description

The heavy-duty polyurethane wheel 80 × 40 mm carries 300 kg per wheel with an outside diameter of 80 mm and a wide 40-mm-Lauffläche. A solid aluminium core and ball bearing make this an easy-running, torsionally rigid industrial wheel for demanding applications.

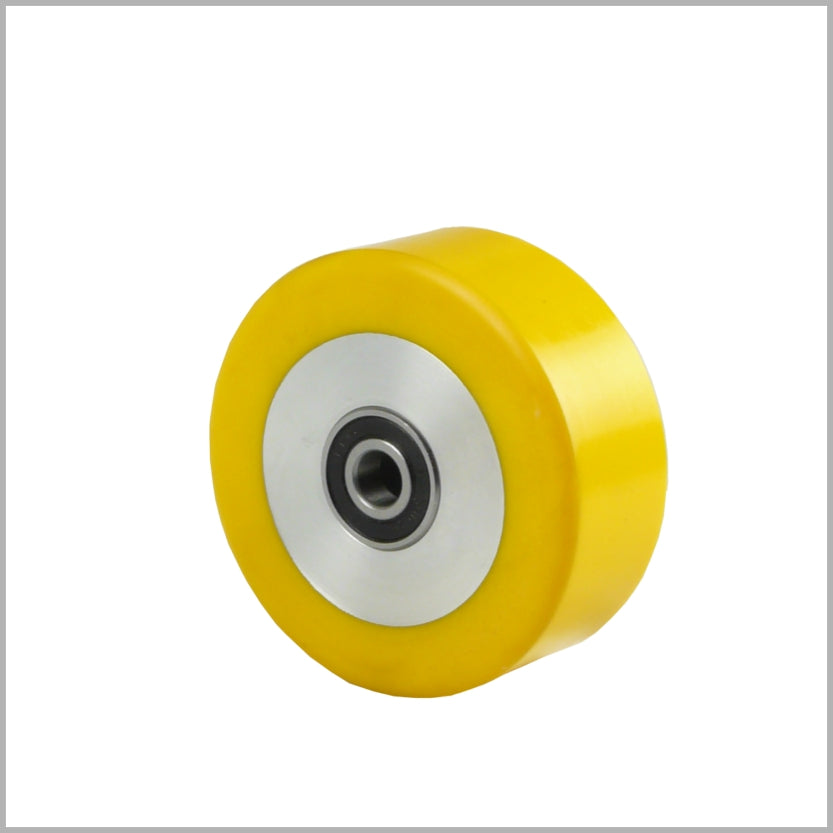

80 × 40 mm Polyurethane wheel with solid aluminium core, flat – series 690

Technical data

Wheel diameter (D) 80 mm
Wheel width (B) 40 mm
Hub length (C) 40 mm
Bore (d1) 12 mm
Load capacity 300 kg
Tread hardness 92 Shore A
Temperature -20 °C to +80 °C
Material Polyurethane (PU), Aluminium
Non-marking Yes
Heat-resistant No

Manufacturer

rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
