Drive Wheel 230x70/45 mm | Vulkollan | Bolt Pattern 5×14mm/3xM10

Drive Wheel 230x70/45 mm | Vulkollan | Bolt Pattern 5×14mm/3xM10
  • Drive Wheel 230x70/45 mm | Vulkollan | Bolt Pattern 5×14mm/3xM10
  • Drive Wheel 230x70/45 mm | Vulkollan | Bolt Pattern 5×14mm/3xM10
166,05 €
IVA incluído
135,00 €
sem IVA
Available immediately  = 2 items in stock
approx. 1–3 days
Delivery from stock.
Customers rate us 4.9/5 based on 10 reviews.
Request a quote

Technische Daten

Wheel diameter (D)
230mm
Wheel width (B)
70.0mm
Load capacity
1150kg
Axle hole (d1)
45.0mm
Schraubloch-Ø
14mm
Lochbild
5x70mm
Kontaktverfärbungsfrei
Ja
Spurlos
Ja
Härte der Lauffläche
92° Shore A.

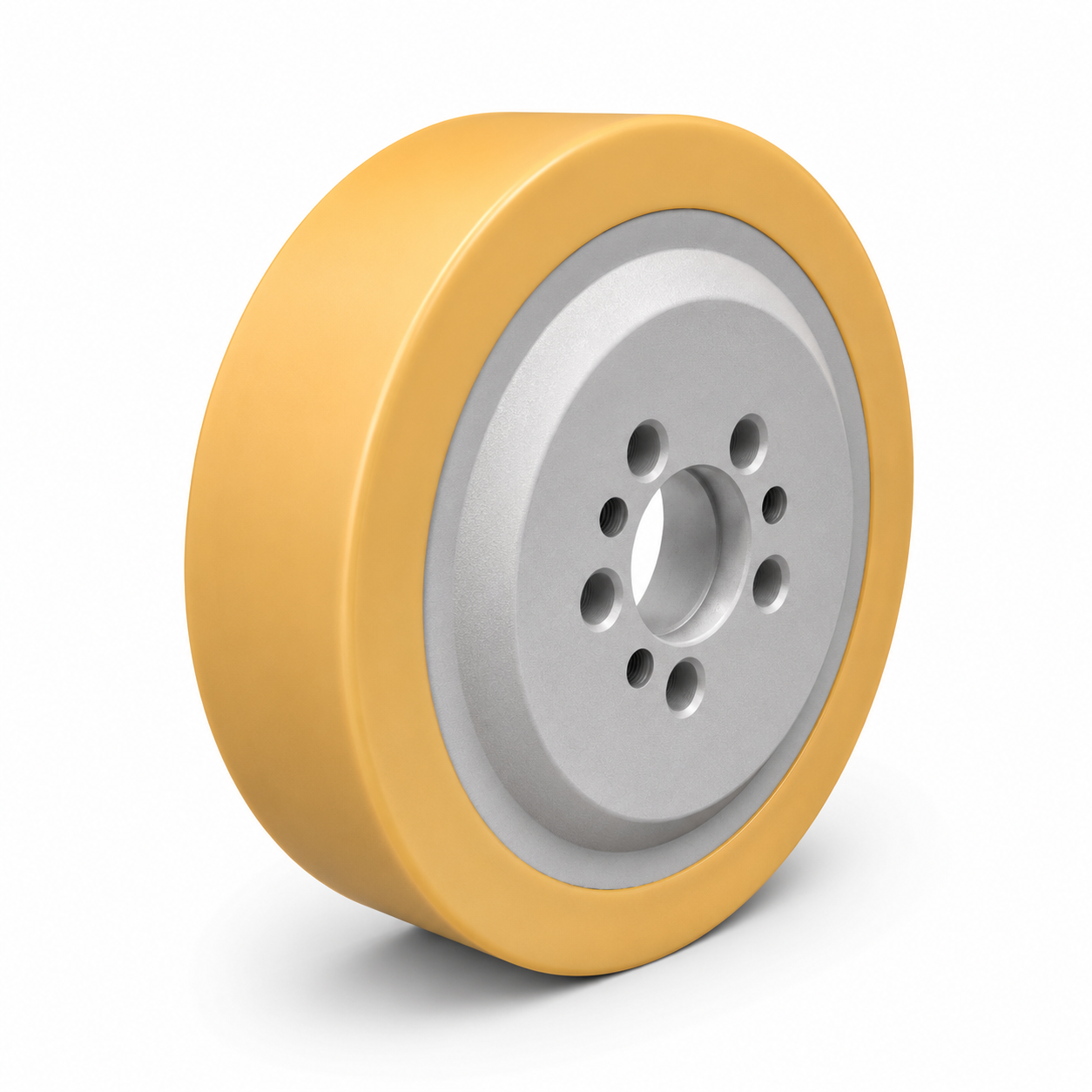

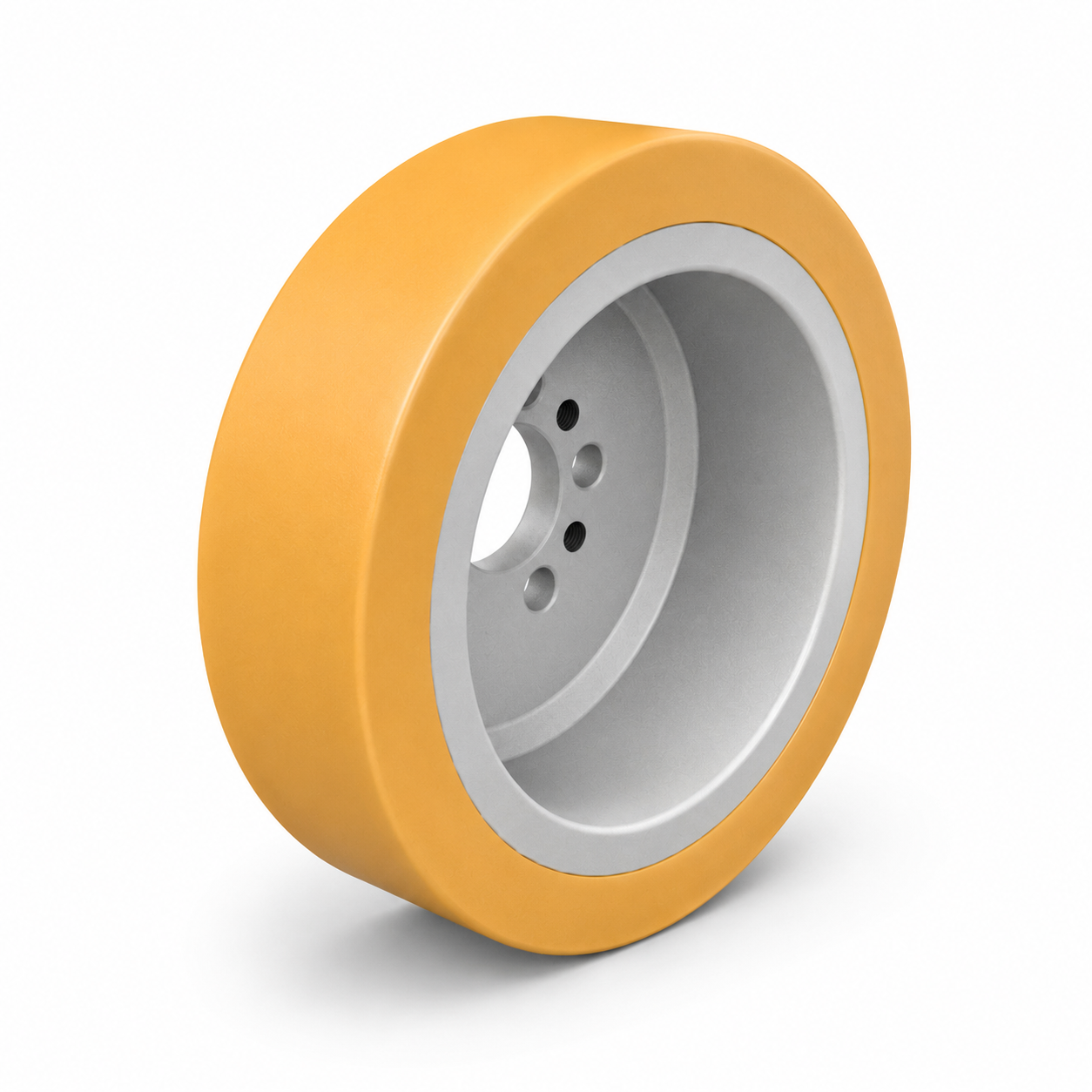

Drive Wheel 230x70 mm Made of Vulkollan

Technical Data

  • Diameter: 230 mm
  • Wheel Width: 70 mm
  • Bore / Hub: 45 mm
  • Material: Vulkollan
  • Bolt Pattern: 5×14 mm + 3 x M10
  • Pitch Circle Diameter: 70 mm
  • Bolt Hole Diameter: 14 mm
  • Area of Application: Pallet Trucks / Forklifts
  • Item Number: AR-230-70-45-VUL

Matching OEM and Comparison Numbers

  • Jungheinrich: 50460103, 63210590
  • Still: 4400716, 0009903819
  • Steinbock: 63210590
  • Other: 63210590

Note: Before ordering, please check the dimensions, bore, bolt pattern, and OEM/comparison numbers on the existing wheel.

All mentioned brand and manufacturer names are solely for identifying compatibility. This is not an original part from the respective manufacturers.
