Technical datasheet

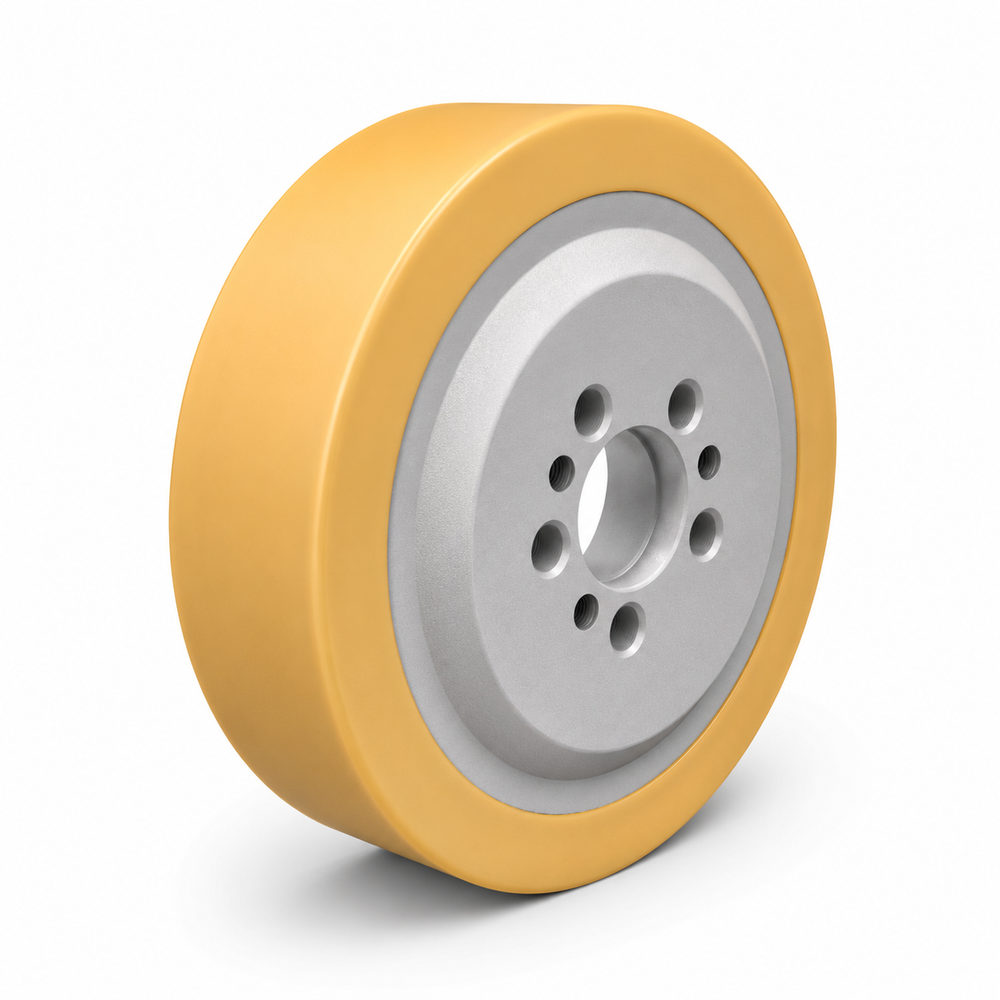

Drive wheel 230x70/45 mm | Vulkollan | bolt hole pattern 5×14mm/3xM10
Item number: AR-230-70-45-VUL
castors-direct.com
Description
Note: Please check the dimensions, bore, bolt pattern and OEM/reference numbers on the existing wheel before ordering. All brand and manufacturer names mentioned are used solely to identify compatibility. This is not an original part from the respective manufacturers.
Technical data
| Wheel diameter (D) | 230 mm |
|---|---|
| Wheel width (B) | 70 mm |
| Load capacity | 1150 kg |
| Bore (d1) | 45 mm |
| Hole Ø | 14 mm |
| Bolt hole spacing | 5x70mm |
| Heat-resistant | No |
| Non-marking | Yes |
| Non-marking | Yes |
| Suitable for autoclaving | No |
| Weight | 5.5 kg |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt.de - Heidestr. 38a - 59174 Kamen
