Technical datasheet

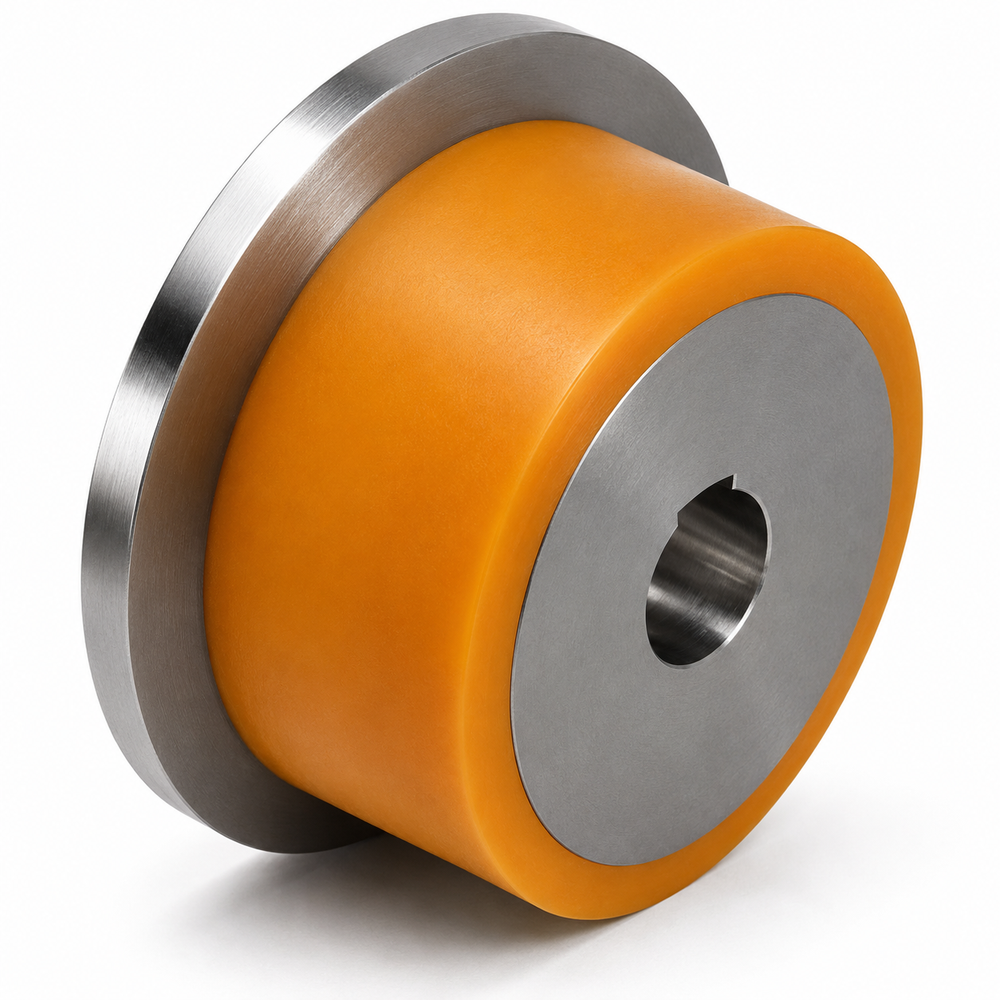

Flanged drive wheel with hub groove | PU or Vulkollan on steel core S355 | flange Ø 240 mm | running Ø 200 mm
Item number: SPRA-S355-200-240-NN-PU
Variant: polyurethane-mdi
castors-direct.com
Description
Flanged drive wheel with hub keyway | PU or Vulkollan® tyre on steel S355-Kern | flange Ø 240 mm | running Ø 200 mm Turned flanged drive wheel with hub keyway to DIN 6885 and cast-on elastomer tyre. The hub keyway accommodates a parallel key for form-fit torque transmission to the drive shaft. The steel core S355 carries the load, while the PU or Vulkollan® tyre absorbs shocks. Tread — selection
Technical data
| Wheel diameter (D) | 200 mm |
|---|---|
| Flanged wheel diameter (D2) | 240 mm |
| Wheel width (B) | 60 mm |
| Load capacity | 2500 kg |
| Bore (d1) | 35 mm |
| Hub length (C) | 60 mm |
| Flange position (E) | 25mm |
| Suitable for autoclaving | No |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
| Temperature | -20 °C to +80 °C |
| Material | Vulkollan®, Polyurethane (PU) |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone: +49 (0)2307 - 9645241
Safety information
This wheel is intended exclusively for transporting and guiding goods. Transporting people is not permitted.
