Technical datasheet

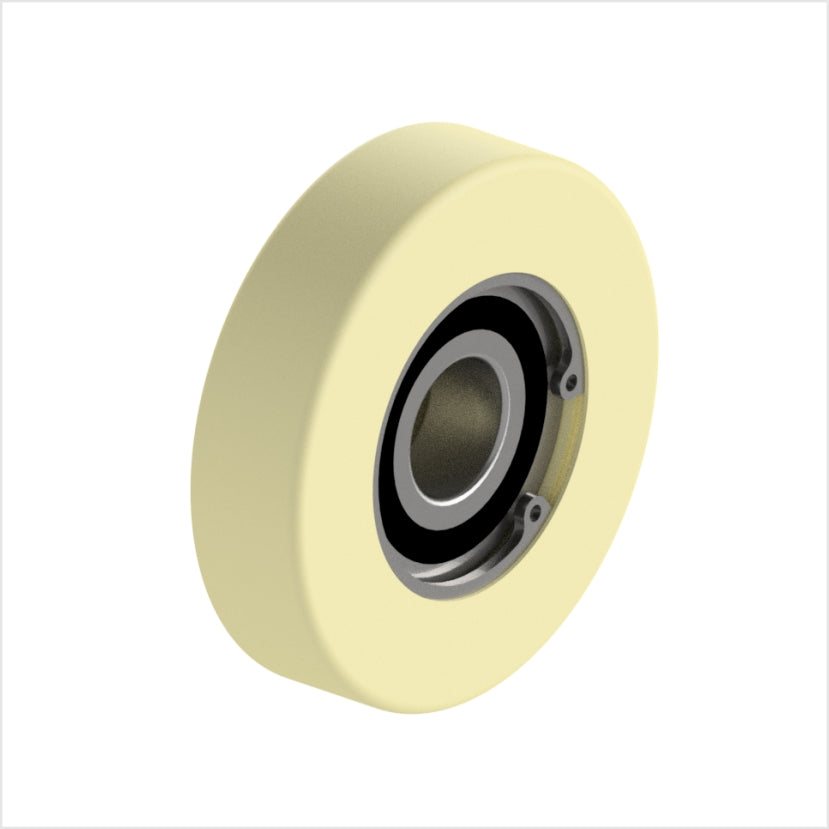

Guide roller | 45×20 mm | Bore Ø12 mm | 140 kg | Polyamide 6G | Ball bearing
Item number: F-2505K/45/20/8/12
Variant: default
castors-direct.com
Description
The 45×20 mm guide roller made of cast Polyamide 6G (PA6G) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. With a load capacity of 140 kg, a bore of Ø12 mm, and a hub length of 10 mm, it is ready for immediate installation and low-maintenance. The integrated ball bearing is axially secured with a circlip – ensuring permanently backlash-free, smooth running even under continuous load. Typical applications include guide …
Technical data
| Wheel diameter (D) | 45 mm |
|---|---|
| Wheel width (B) | 20 mm |
| Load capacity | 140 kg |
| Hub length (C) | 8 mm |
| Axle hole (d1) | 12 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +100 °C |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
