Guide roller | 28×14 mm | Vulkollan® | bore Ø4 mm | 25 kg | ball bearing

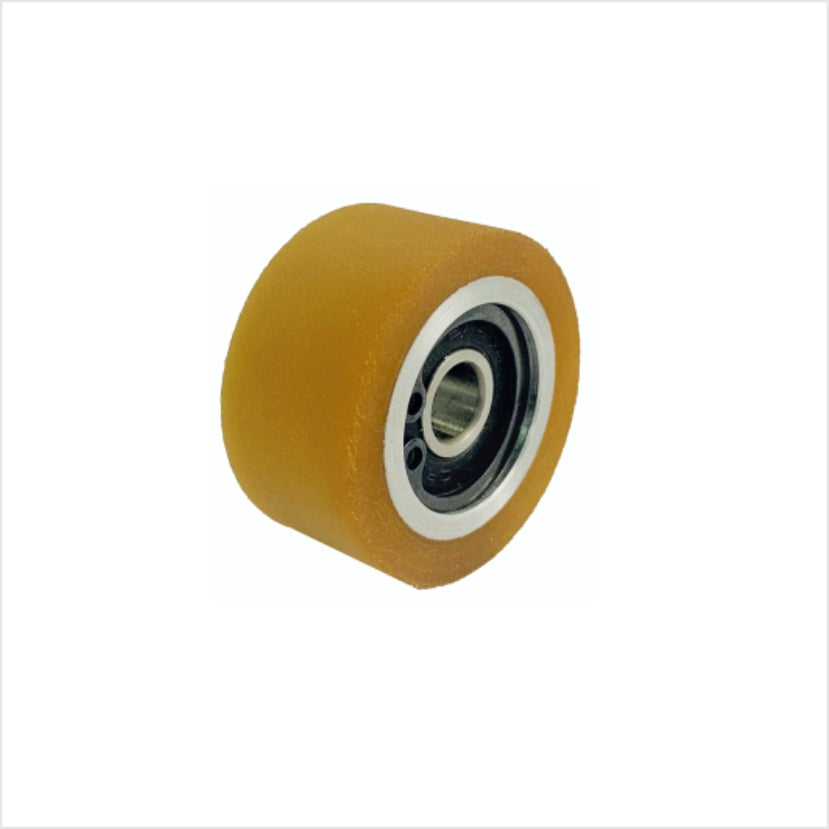

Guide roller 28×14 mm – Vulkollan® 92 Shore A / steel body

The guide roller 28×14 mm (with steel body and Vulkollan® tread (92 Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special-purpose machinery and intralogistics. Load capacity 25 kg, bore Ø4 mm, hub length 6 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.

Technical features

• Outside diameter: 28 mm
• Wheel width: 14 mm
• Hub length: 6 mm
• Bore: Ø4 mm
• Load capacity: 25 kg
• Material: Vulkollan® 92 Shore A / steel body
• Bearing: ball bearing centrally positioned, secured with retaining ring

Areas of use

• Guide rollers in conveyor and transport systems
• Special-purpose machinery, fixtures and linear guides
• Storage and intralogistics systems
• Gravity conveyor lines and assembly systems

Notes on selection

Please check the axle diameter and axial installation situation before ordering. The retaining ring is included in the scope of delivery.
