Guide roller | 40×15 mm | Vulkollan® | Bore Ø8 mm | 60 kg | Ball bearing

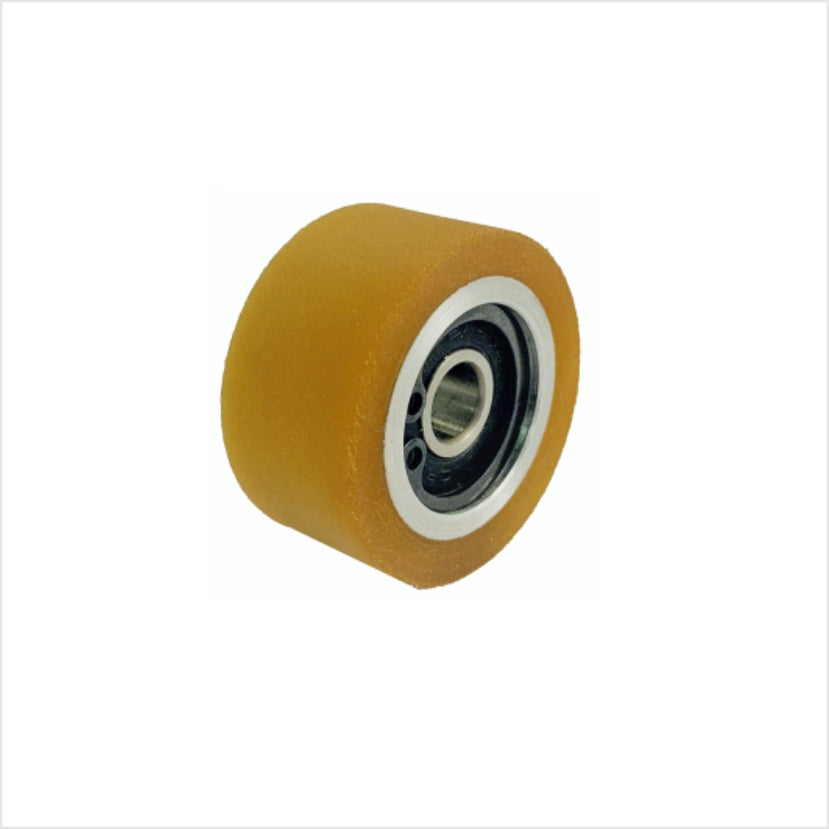

Guide roller 40×15 mm – Vulkollan® 92° Shore A / Steel body

The 40×15 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 60 kg, bore Ø8 mm, hub length 10 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.

Technical features

• Outer diameter: 40 mm
• Wheel width: 15 mm
• Hub length: 10 mm
• Bore: Ø8 mm
• Load capacity: 60 kg
• Material: Vulkollan® 92° Shore A / steel body
• Bearing: Ball bearing in the middle, secured with retaining ring

Areas of application

• Guide rollers in conveying and transport systems
• Special machines, fixtures, and linear guides
• Warehouse and intralogistics systems
• Gravity conveyor lines and assembly systems

Notes on selection

Please check the axle diameter and axial installation situation before ordering. The retaining ring is included in the scope of delivery.
