Technical datasheet

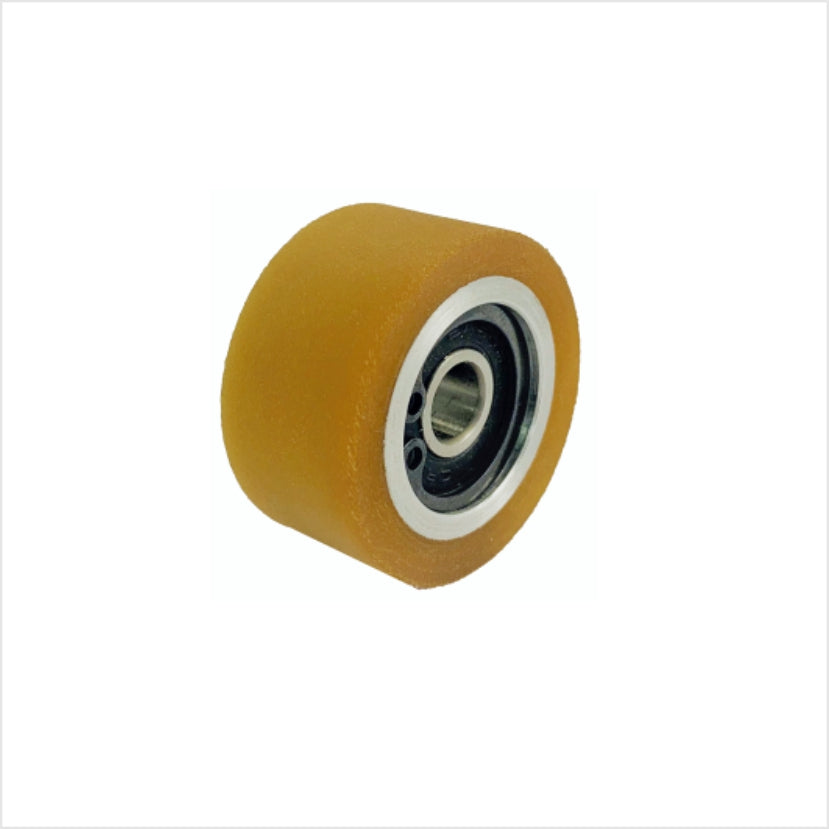

Guide roller | 40×15 mm | Vulkollan® | Bore Ø8 mm | 60 kg | Ball bearing
Item number: F-179KFL/40/15/10/8
Variant: default
Description
The 40×15 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 60 kg, bore Ø8 mm, hub length 10 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.
Technical data
| Wheel diameter (D) | 40 mm |
|---|---|
| Wheel width (B) | 15 mm |
| Load capacity | 60 kg |
| Hub length (C) | 10 mm |
| Axle hole (d1) | 8 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Safety information
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load limits: Do not ex...
