Technical datasheet

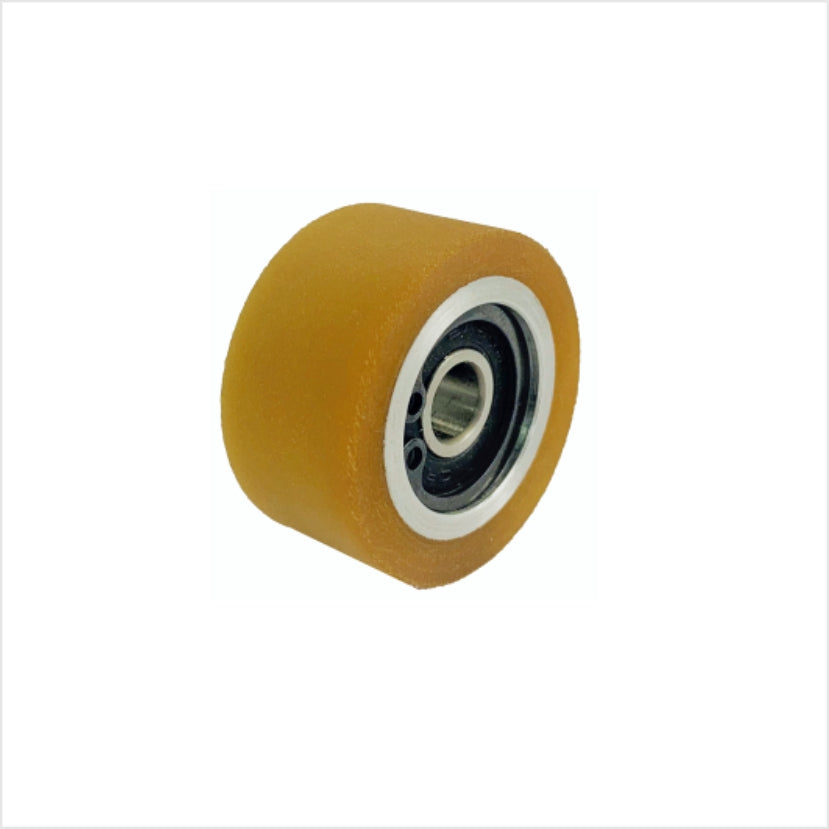

Guide roller | 40×25 mm | Vulkollan® | Bore Ø8 mm | 60 kg | Ball bearing
Item number: F-179KFL/40/25/10/8
Variant: default
Description
The 40×25 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveying technology, special machinery, and intralogistics. Load capacity 60 kg, bore Ø8 mm, hub length 10 mm – ready for direct installation. Typical fields of application are guide rollers in conveying technology and mechanical engineering. Please check the axle diameter and axial installation situation before ordering. The circlip is included in the delivery.
Technical data
| Wheel diameter (D) | 40 mm |
|---|---|
| Wheel width (B) | 25 mm |
| Load capacity | 60 kg |
| Hub length (C) | 10 mm |
| Axle hole (d1) | 8 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Safety information
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
