Guide roller | 40×25 mm | Vulkollan® | Bore Ø8 mm | 60 kg | Ball bearing

guide roller 40×25 mm Vulkollan® Kugellager 60 kg bore Ø8 mm
  • guide roller 40×25 mm Vulkollan® Kugellager 60 kg bore Ø8 mm
40,95 €
IVA incluído
33,29 €
sem IVA
Assembly production
approx. 3–7 days
The item is assembled after receipt of your order.
Version
Request a quote

Technische Daten

Wheel diameter (D)
40mm
Wheel width (B)
25.0mm
Load capacity
60kg
Hub length (C)
10.0mm
Axle hole (d1)
8.0mm
Spurlos
Ja
Kontaktverfärbungsfrei
Ja

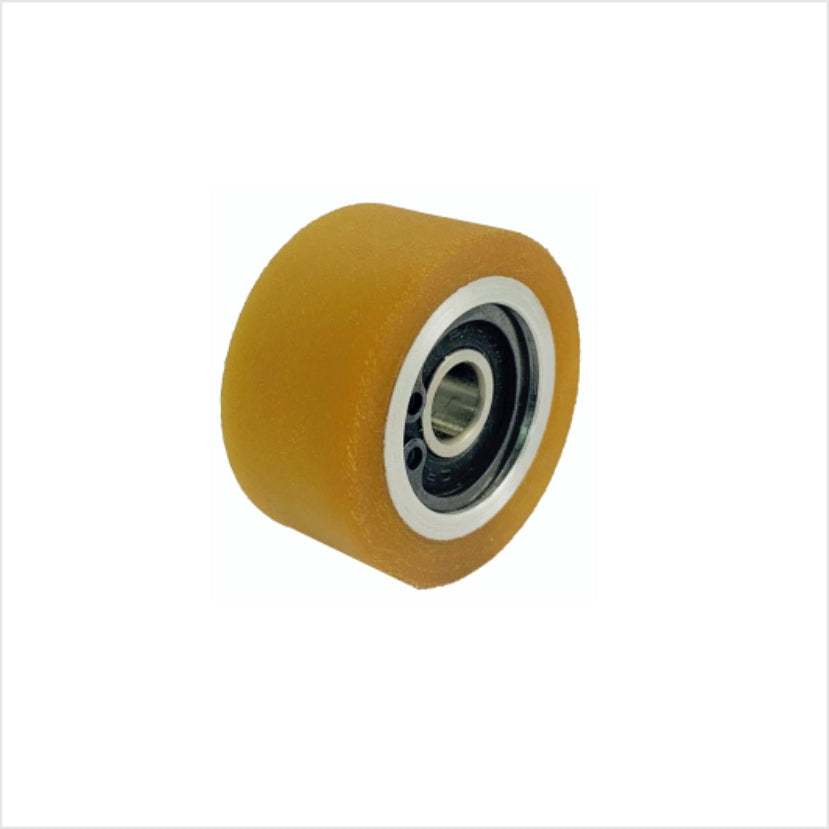

Guide Roller 40×25 mm – Vulkollan® 92° Shore A / Steel Body

The 40×25 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveying technology, special machinery, and intralogistics. Load capacity 60 kg, bore Ø8 mm, hub length 10 mm – ready for direct installation. Typical fields of application are guide rollers in conveying technology and mechanical engineering.

Technical Features

  • Outer diameter: 40 mm
  • Wheel width: 25 mm
  • Hub length: 10 mm
  • Bore: Ø8 mm
  • Load capacity: 60 kg
  • Material: Vulkollan® 92° Shore A / Steel body
  • Bearing: Ball bearing centered, secured with circlip

Areas of Application

  • Guide rollers in conveyor and transport systems
  • Special machinery, fixtures, and linear guides
  • Warehouse and intralogistics systems
  • Gravity conveyor lines and assembly systems

Notes on Selection

Please check the axle diameter and axial installation situation before ordering. The circlip is included in the delivery.
