Guide roller | 50×15 mm | Vulkollan® | Bore Ø9 mm | 85 kg | Ball bearing

guide roller 50×15 mm Vulkollan® Kugellager 85 kg bore Ø9 mm
  • guide roller 50×15 mm Vulkollan® Kugellager 85 kg bore Ø9 mm
49,53 €
IVA incluído
40,27 €
sem IVA
Assembly production
approx. 3–7 days
The item is assembled after receipt of your order.
Version
Request a quote

Technische Daten

Wheel diameter (D)
50mm
Wheel width (B)
15.0mm
Load capacity
85kg
Hub length (C)
10.0mm
Axle hole (d1)
9.0mm
Spurlos
Ja
Kontaktverfärbungsfrei
Ja

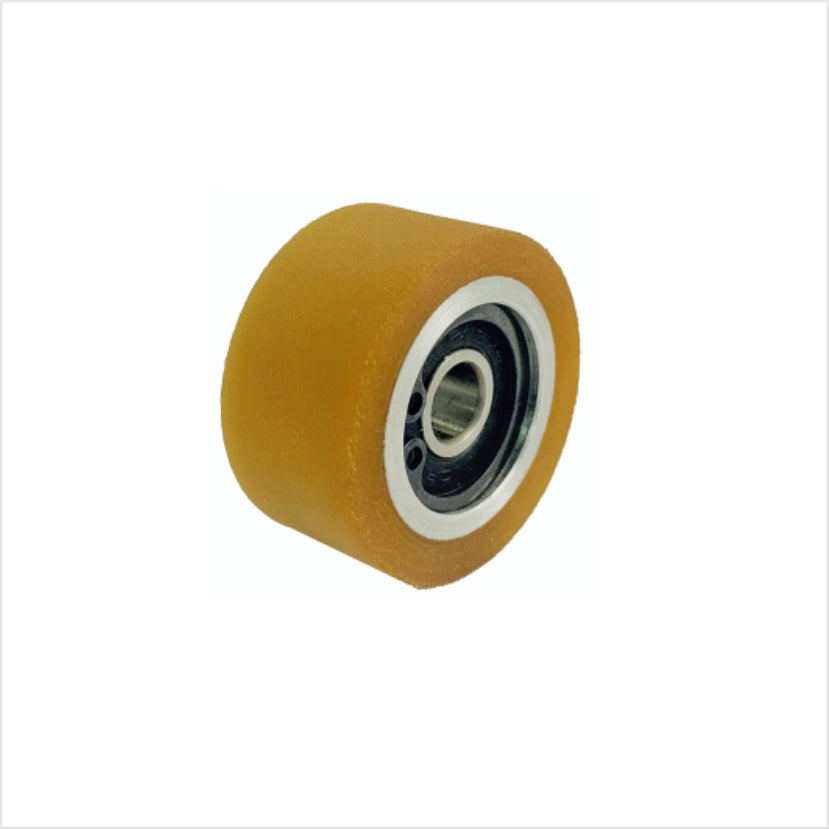

Guide Roller 50×15 mm – Vulkollan® 92° Shore A / Steel Body

The 50×15 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveying technology, special machinery, and intralogistics. Load capacity 85 kg, bore Ø9 mm, hub length 10 mm – ready for immediate installation. Typical applications include guide rollers in conveying technology and mechanical engineering.

Technical Features

  • Outer diameter: 50 mm
  • Wheel width: 15 mm
  • Hub length: 10 mm
  • Bore: Ø9 mm
  • Load capacity: 85 kg
  • Material: Vulkollan® 92° Shore A / steel body
  • Bearing: Ball bearing in the center, secured with a circlip

Areas of Application

  • Guide rollers in conveying and transport systems
  • Special machinery, fixtures, and linear guides
  • Warehouse and intralogistics systems
  • Gravity conveyor lines and assembly lines

Notes on Selection

Please check axle diameter and axial installation situation before ordering. The circlip is included in the scope of delivery.
