Mini heavy-duty swivel castor 50 mm with directional lock (can be engaged every 4-fach 45°) – compact PU roller for workbenches, material trolleys & mobile workstations

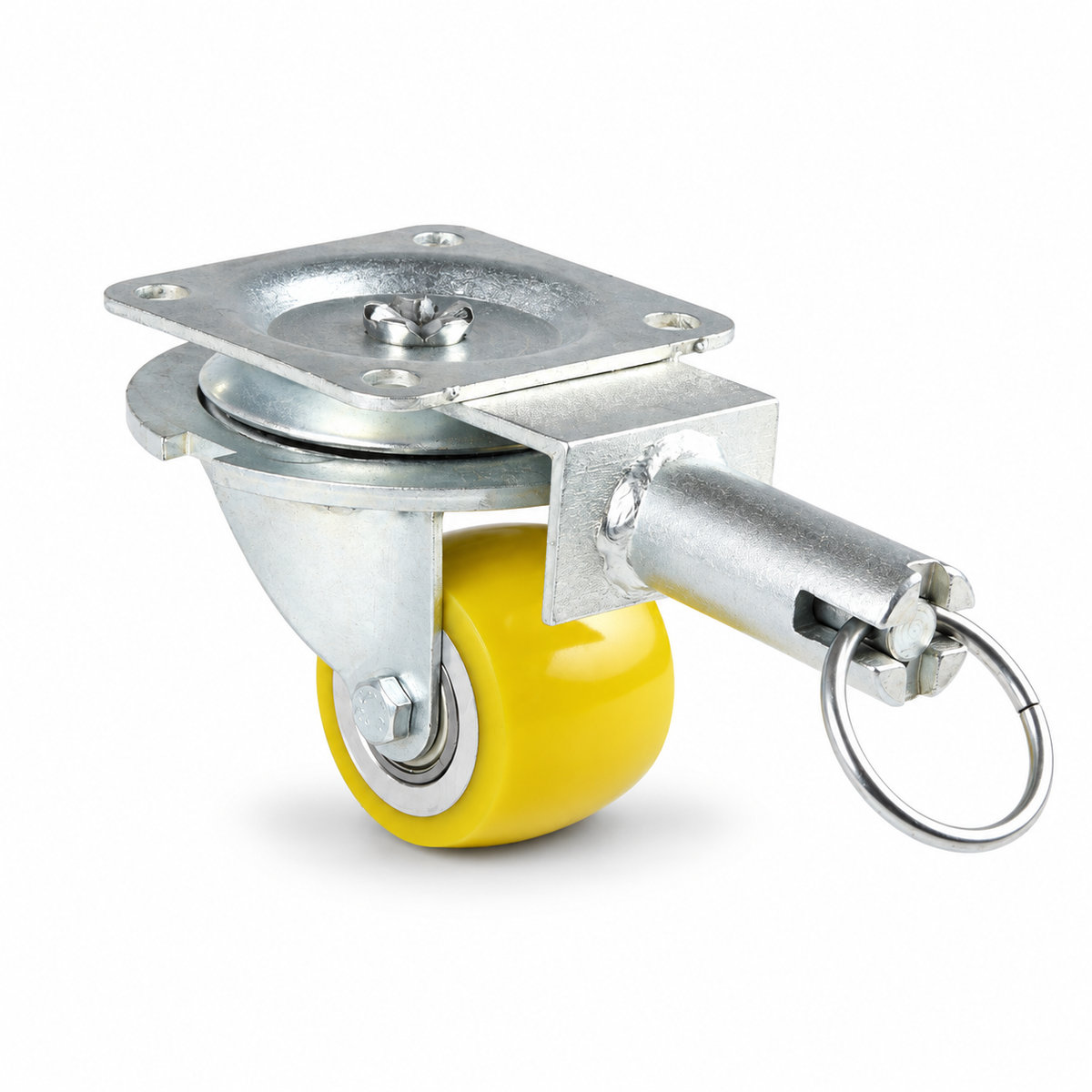

Mini heavy-duty swivel castor with directional lock, crowned wheel profile, yellow polyurethane wheel in galvanised steel housing
63,70 €
incl. VAT
50,76 €
excl. VAT
Available immediately
approx. 1–3 days
Delivery is made from stock.
Castor type
Wheel shape
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
50 mm
Wheel width (B)
40 mm
Load capacity
180 kg
Overall height
82 mm
Offset
35 mm
Hole Ø
9 mm
Bolt hole spacing
60 x 60 mm
Plate size
80 x 80 mm
Fastening
  • Plate
Weight
220 g
Temperature
-20 °C to +80 °C
Tread hardness
92 Shore A
Material
Polyurethane (PU)

Mini heavy-duty swivel castor with directional lock – compact, robust & directionally stable

Our mini heavy-duty swivel castor with directional lock combines high load capacity in a very small installation space with a 4-fach engaging directional lock (4 × 45°). This allows the running direction to be fixed in four positions and the castor runs exactly straight ahead – ideal for controlled pushing of heavy loads over longer distances.

✔ Directional lock 4-fach:

  • Engages in 4 positions (45° each) and holds the running direction – for precise straight-line travel and controlled manoeuvring.

✔ Available in two versions:

  • Single wheel: 50 × 40 mm
  • Twin wheel: 2 × 20 mm for optimised load distribution and particularly easy manoeuvring

✔ Wheel profile as required:

  • Flat – for high stability and precise straight-line travel
  • Crowned – for particularly easy swivelling and smooth running even on tight bends

✔ Secure top plate mounting:
The sturdy top plate mounting (80 × 80 mm) ensures reliable installation on transport trolleys, equipment, furniture or custom constructions.

Areas of use:
Ideal for workshops, industrial applications, furniture construction, exhibition stands, laboratory equipment and much more.

Advantages at a glance:

  • Directional lock 4-fach (4 × 45°) for exact straight-line travel
  • High load capacity despite compact design
  • Smooth swivel movement
  • Robust construction for long service life
  • Choice of flat or crowned tread
  • Precise and secure mounting by means of top plate
