Technical datasheet

Mini heavy-duty swivel castor 50 mm with directional lock (can be engaged every 4-fach 45°) – compact PU roller for workbenches, material trolleys & mobile workstations

Item number: LRI4-MIS/690KFL/050/40

Variant: Standard castor / flat

Description

Our mini heavy-duty swivel castor with directional lock combines high load capacity in a very small installation space with a 4-fach engaging directional lock (4 × 45°). This allows the running direction to be fixed in four positions and the castor runs exactly straight ahead – ideal for controlled pushing of heavy loads over longer distances. ✔ Directional lock 4-fach: ✔ Available in two versions: ✔ Wheel profile as required:

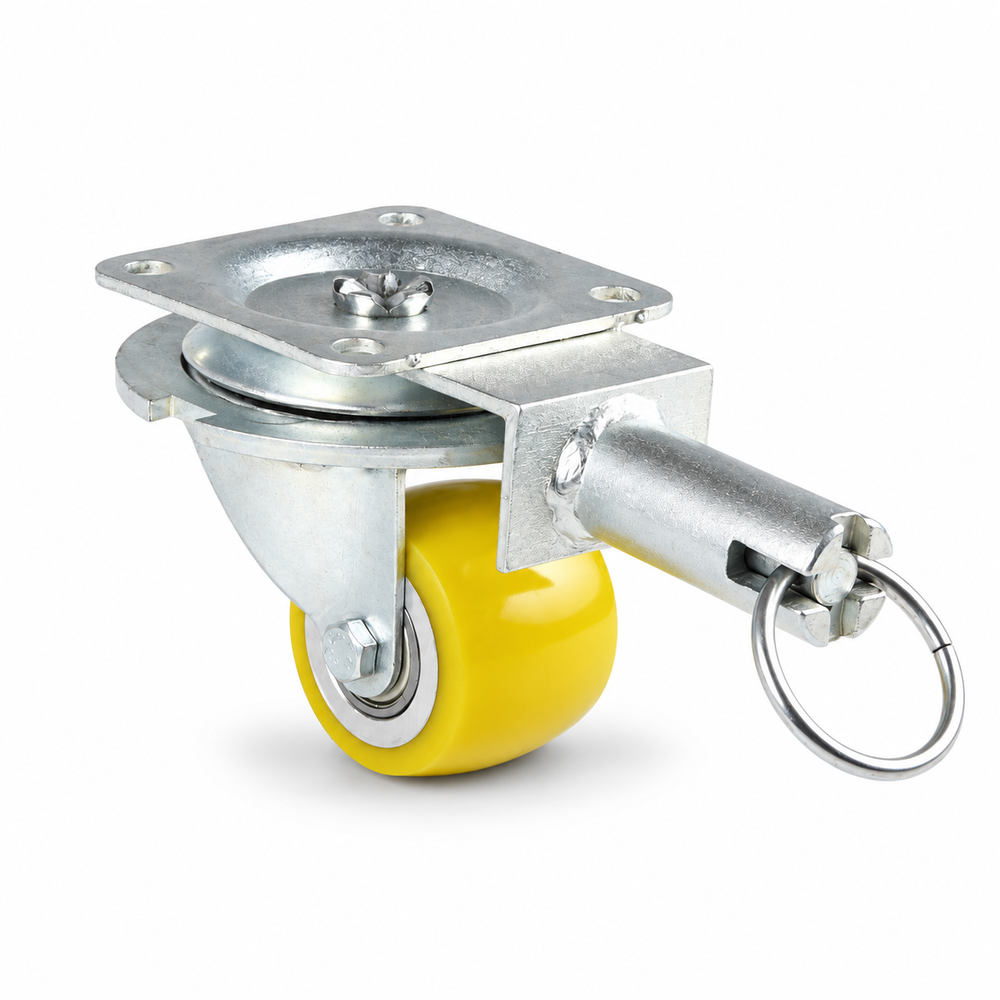

Mini heavy-duty swivel castor with directional lock, crowned wheel profile, yellow polyurethane wheel in galvanised steel housing

Technical data

Wheel diameter (D) 50 mm
Wheel width (B) 40 mm
Load capacity 180 kg
Overall height 82 mm
Offset 35 mm
Hole Ø 9 mm
Bolt hole spacing 60 x 60 mm
Plate size 80 x 80 mm
Fastening Plate
Weight220 g
Temperature -20 °C to +80 °C
Tread hardness 92 Shore A
Material Polyurethane (PU)

Manufacturer

rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
