Groove Profile Wheel | Ø100×40 mm | Polyamide | 40 mm Profile | 10 mm Profile Groove | 280 kg

Grooved Profile Wheel Ø100×40 mm – Polyamide 6G for 40 mm Aluminum Profile

Compatibility: Suitable for 40 mm aluminum profile systems, including compatibility with profiles from item®, Fath®, and Bosch Rexroth® (groove width 6 / 8 / 10 / 12 mm depending on variant).

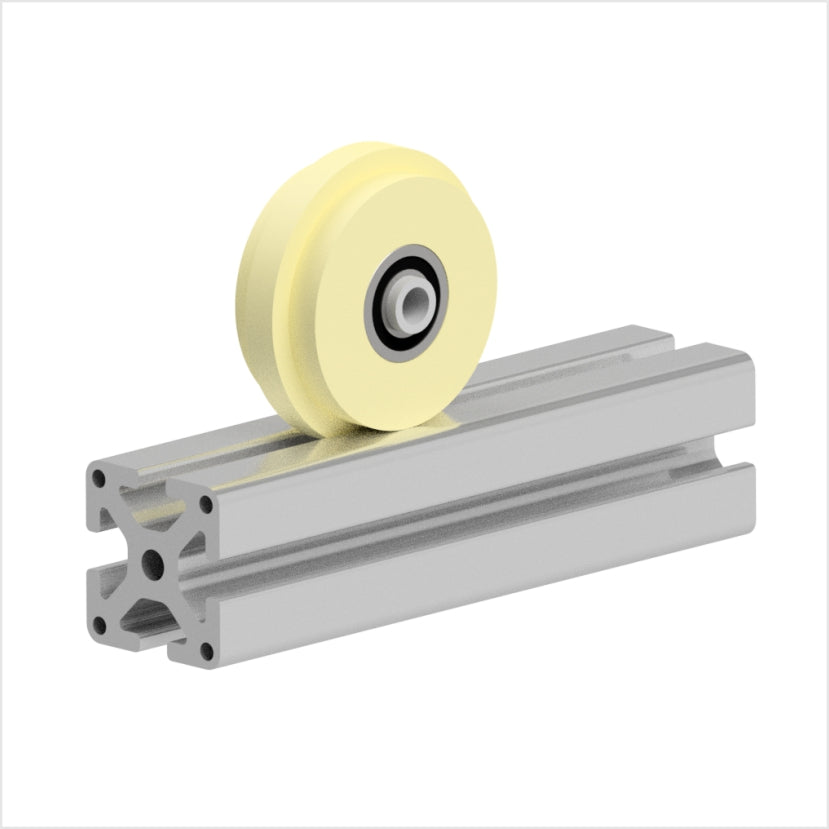

The Ø100×40 mm grooved profile wheel made of Polyamide 6G is specifically designed for precise guidance in 40 mm aluminum profiles – for shelves, material trolleys, workbenches, or linear axes that require smooth and low-play movement. The groove geometry positively engages with the aluminum profile, enabling quiet linear movement without additional guide elements. More application examples can be found on our solutions page for conveying technology and mechanical engineering.

Bearing Designs

The grooved profile wheel is available in three variants:

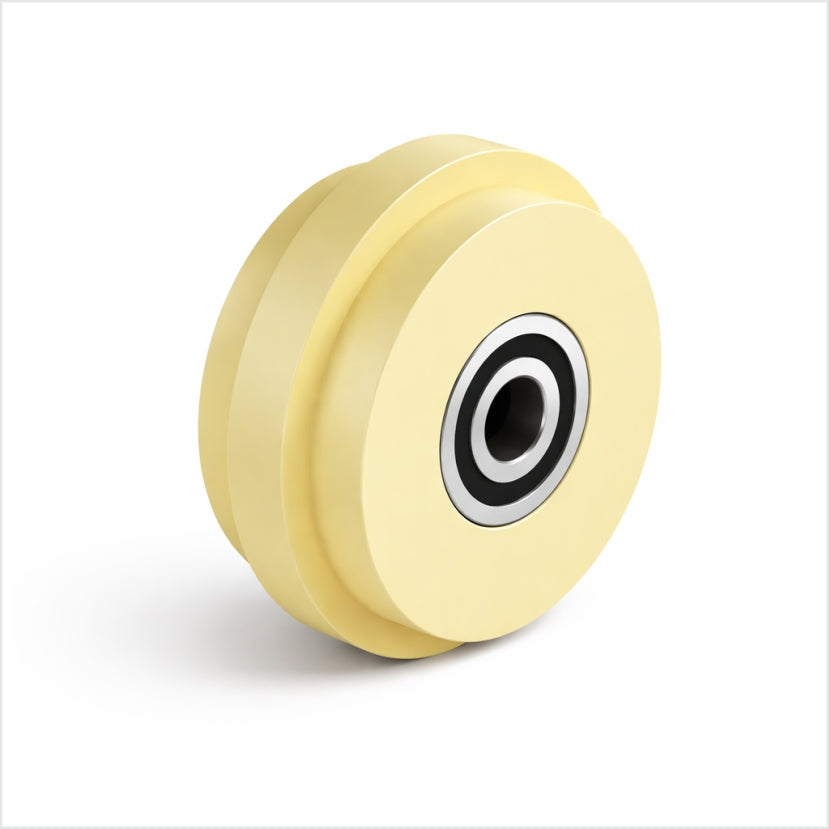

• With ball bearing: Double-sealed deep groove ball bearing made of steel – low-maintenance, can be mounted directly on an axle or pin, for rotating wheels.
• With stainless steel ball bearing: Same as the ball bearing version, but with a stainless steel ball bearing for damp or corrosive environments.
• With keyway: Form-fit shaft connection according to DIN 6885 – for driven wheels or if the wheel needs to be rigidly connected to the shaft.

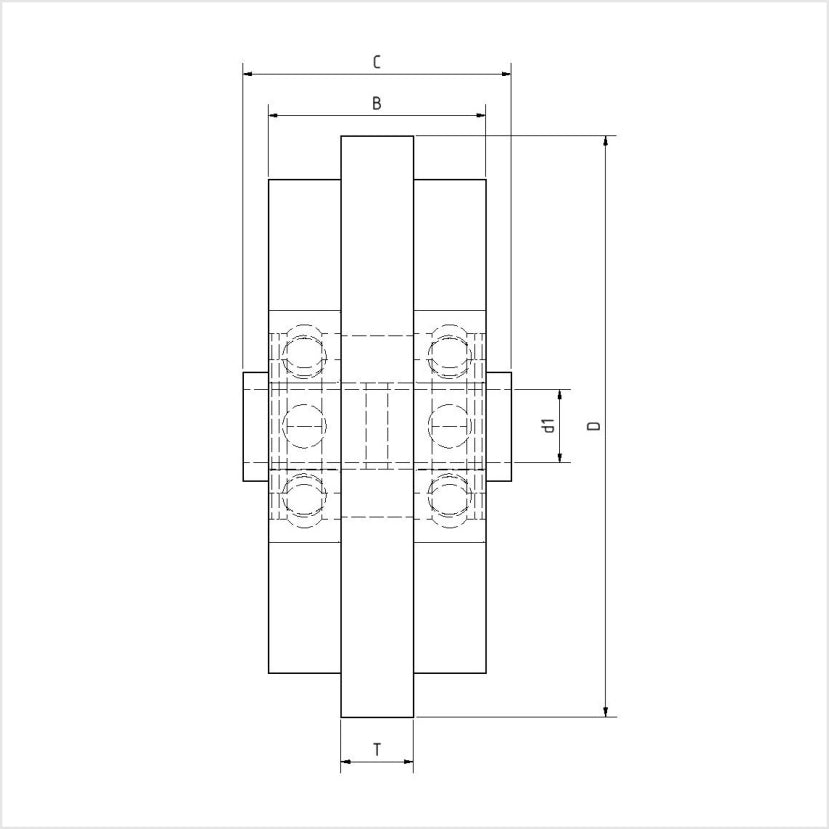

Technical Features

• Outer diameter: 100 mm
• Wheel width: 40 mm
• Hub length: 40 mm
• Bore: Ø10 mm
• Running width: 9.8 mm
• Groove width: 10 mm
• Load capacity: 280 kg
• Suitable for: 40 mm aluminum profile (item®, Fath®, Bosch Rexroth®, etc.)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-safe

Areas of Application

• Shelving and storage systems with linear guidance
• Material trolleys and mobile workbenches
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveying technology

Notes

Please check the profile groove dimensions and axle diameter before ordering. For the keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions on request.

Trademark Notice / Compatibility Notice

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The grooved profile wheels offered on this page are not original products from these manufacturers, but compatible accessories. The mention of brand names serves exclusively to describe compatibility.
