Flanged Wheel | 250 x 80 mm | Polyamide 6G | Ball Bearings | Hub Groove | Tread 3°

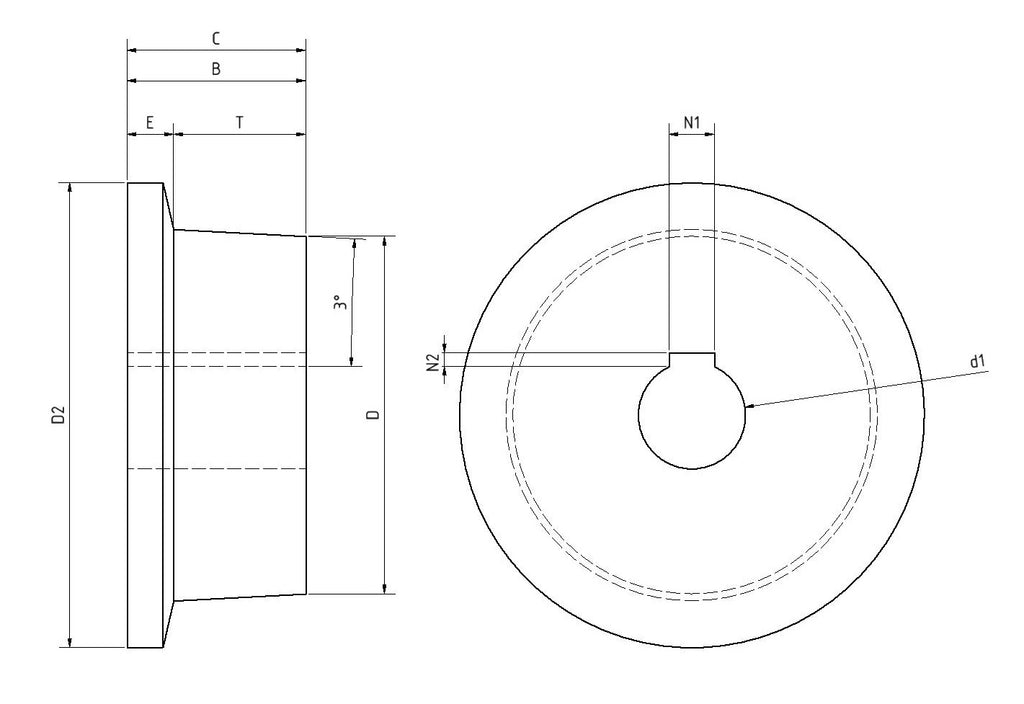

Technische Daten
Wheel diameter (D)
250mm
Spurkranz-Ø (D2)
300mm
Wheel width (B)
80.0mm
Laufbreite (T)
Load capacity
3000kg
Axle hole (d1)
40.0mm
Hub length (C)
90.0mm
Spurlos
Ja
Kontaktverfärbungsfrei
Ja
Material
Polyamid 6G
Härte der Lauffläche
90° Shore D.

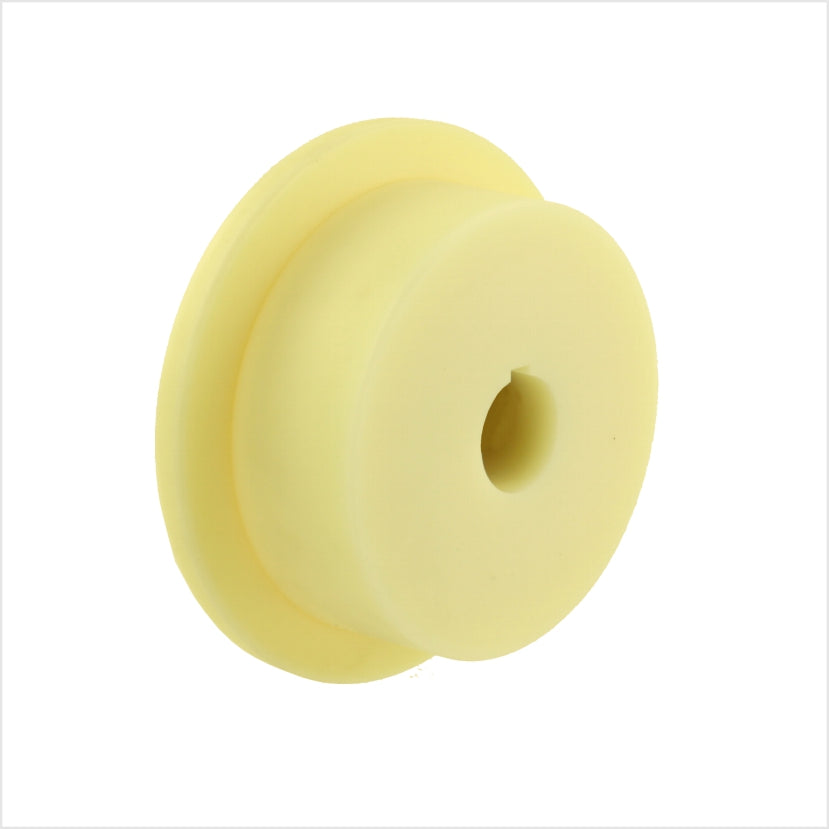

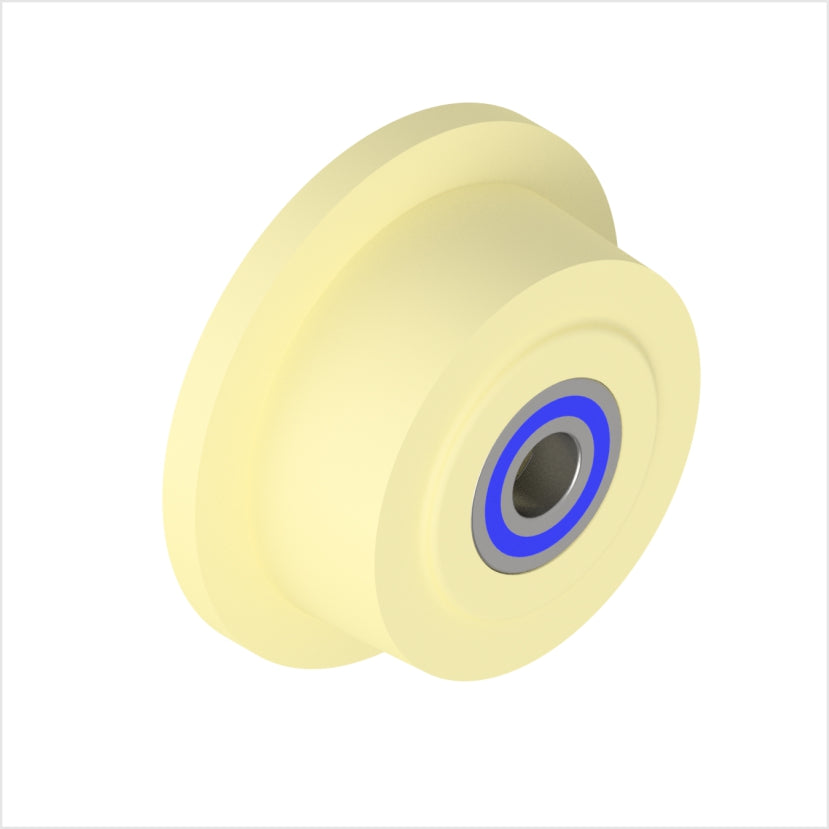

Precision-turned flanged wheel made of cast polyamide 6G – tough, high-strength, and significantly lighter than comparable steel wheels. The 3° inclined tread ensures optimal rail contact and even load distribution. Available with 2 2RS ball bearings for smooth freewheeling or with a hub keyway for rotation-proof drive on the shaft.
| Feature | Value |
|---|---|
| Diameter | 250 mm |
| Width | 80 mm |
| Material | Polyamide 6G (PA6G) |
| Tread | 3° inclined towards the axle |
| Bearing | 2 × 2RS ball bearings or hub keyway |
| Surface | natural color |
