U-Groove Roller | Polyamide 6G | 100x40 mm | for 20-30 mm Round Profile
92,50 €
IVA incluído
75,20 €
sem IVA
Production manufacturing
approx. 7–12 days
The product is manufactured after the order has been placed.

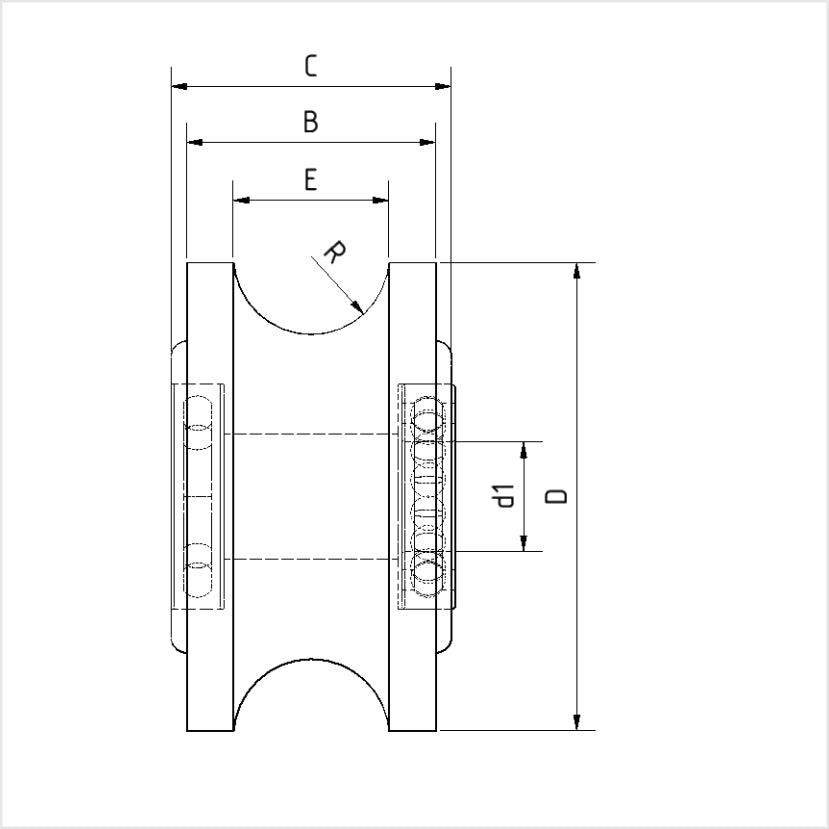

Technische Daten
Wheel diameter (D)
100mm
Wheel width (B)
40.0mm
Load capacity
550kg
Axle hole (d1)
20.0mm
Hub length (C)
40.0mm
Kontaktverfärbungsfrei
Ja
Spurlos
Ja
Material
Polyamid 6G
Härte der Lauffläche
80° Shore D.
Achsloch Passung
Passung Nabennut
Nabennuthöhe (N2)
Nabennutbreite (N1)
This U-profile roller made of high-quality Polyamide 6G is designed for guiding and running on round tubes with an outer diameter of 20, 25 or 30 mm. The profiled running surface positively engages the round profile and ensures precise, laterally guided movement - without additional guiding elements.
Material & Properties
Polyamide 6G (cast polyamide) is characterized by high wear resistance, good chemical resistance and low operating noise. The roller runs quietly, is food-safe according to common PA standards and is suitable for dry as well as slightly damp environments.
- Roller material: Polyamide 6G (PA 6 G)
- Running surface profile: U-profile for round tubes Ø 20-30 mm
- Roller diameter: 100 mm
- Roller width: 40 mm
Variants
The roller is available in two versions:

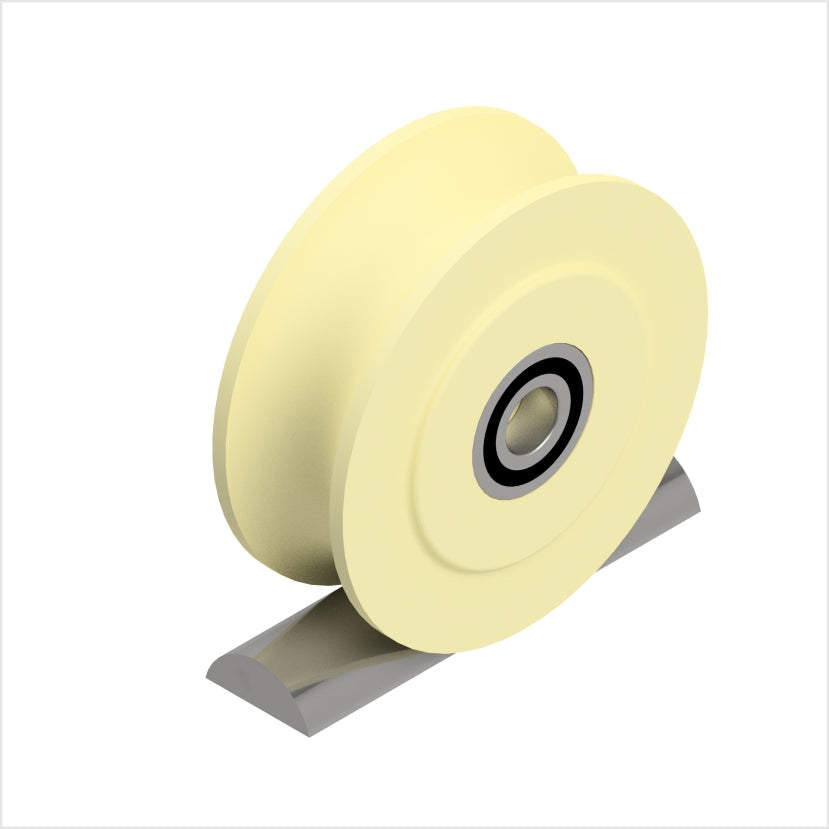

With ball bearing — For applications with high mileage and low rolling resistance. The low-maintenance ball bearing enables smooth, effortless movements even in continuous operation. Suitable for driven and idler rollers.

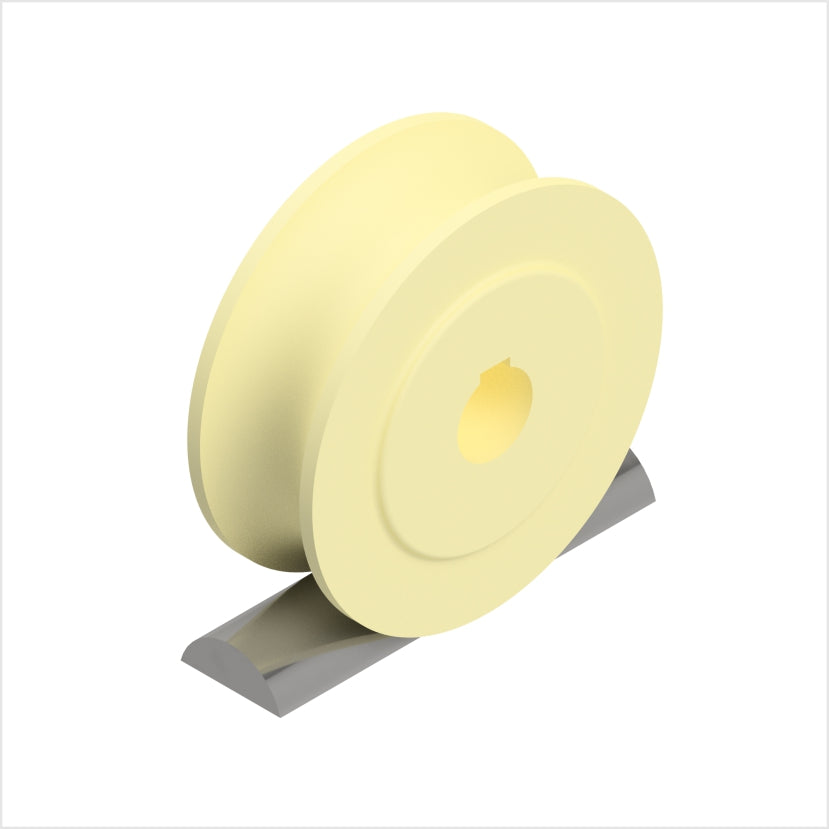

With plain bore and keyway — For rotationally fixed shaft connections. The keyway enables positive power transmission in driven rollers. Ideal when the roller is to be fixed on a drive shaft and torque is to be transmitted.
Typical applications
- Conveyor and transport systems with round tube constructions
- Guide rollers in special machines and fixtures
- Linear guides in mechanical engineering
- Warehousing and intralogistics systems
- Assembly lines with gravity conveyor sections
