Technisches Datenblatt

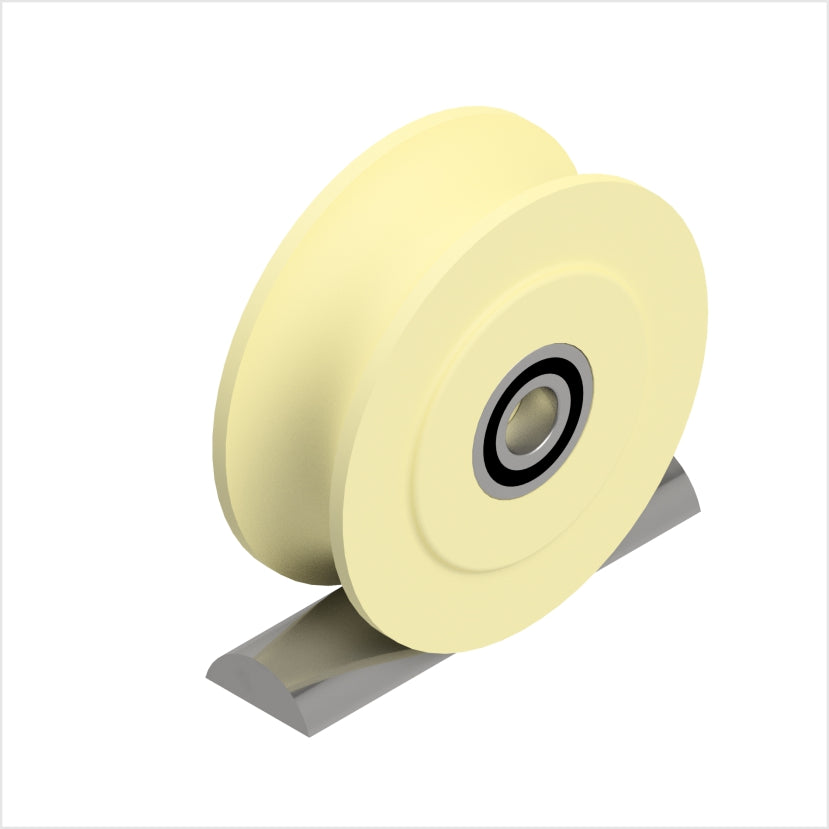

U-Groove Roller | Polyamide 6G | 100x40 mm | for 20-30 mm Round Profile
Artikelnummer: DSPU-2505K/100/40/40/20/20
Ausführung: with ball bearing / 20 mm / R=10mm
Beschreibung
This U-profile roller made of high-quality Polyamide 6G is designed for guiding and running on round tubes with an outer diameter of 20, 25 or 30 mm. The profiled running surface positively engages the round profile and ensures precise, laterally guided movement - without additional guiding elements. Material & Properties Polyamide 6G (cast polyamide) is characterized by high wear resistance, good chemical res...
Technische Daten
| Rad-Ø | 100 mm |
|---|---|
| Radbreite | 40 mm |
| Einbaubreite | 40 mm |
| Achsloch-Ø | 20 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 40 mm |
| Nabennutbreite (N1) | 6 mm |
| Nabennuthöhe (N2) | 2.8 mm |
| Passung Nabennut | JS9 |
| Rillenradius | 12.5 |
| Rillentiefe | 12.5 |
| Tragfähigkeit | 550 kg |
| Temperaturbereich | '-20/+80° C. |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 1 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 3 |
| Material | Polyamid 6G |
| Härte der Lauffläche | 80 Shore D |
| Farbe | Beige |
| Tragfähigkeitsklasse | up to 800 kg |
Hersteller
rollen-direkt.de, Heidestr. 38a, 59174 Kamen
Sicherheitshinweis
This roller is intended exclusively for the transport and guidance of goods. The transport of persons is not permitted. Before assembly, ensure that the system is shut down and secured. Screw the roller firmly and without play – a hanging or loose attachment can lead to uncontrolled detachment and accidents. Durin...
