Technical datasheet

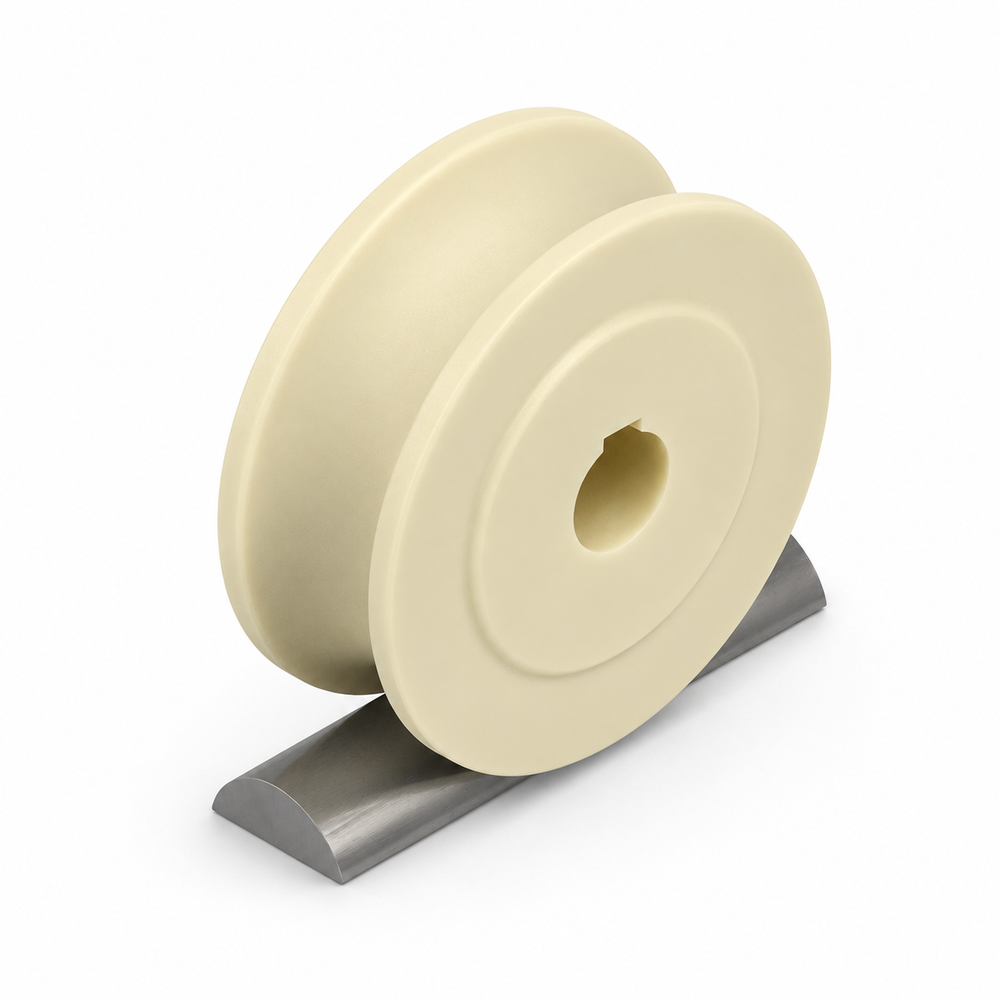

U-groove roller polyamide 6G 100×40 mm for 30 mm pipe (R=15 mm), bore 12 mm with keyway
Item number: DSPU-2505PN/100/40/40/12/30
castors-direct.com
Description
U-groove roller made of polyamide 6G with keyway and circumferential U-groove tread contour for secure guidance on a tube with Ø 30 mm. The bore has a hub groove according to DIN 6885 and can therefore be connected to a shaft in a torsion-proof manner – for driven rollers and drive functions. Polyamide 6G is a high-strength, abrasion-resistant technical plastic with low weight, quiet running and gentle on the mating surface. Manufactured to order.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Rillenradius (R) | 15 |
| Rohr-Durchmesser | 30 mm |
| Load capacity | 400 kg |
| Material | Polyamid 6G |
| Temperature | -30 °C to +80 °C |
| Tread hardness | 90 Shore D |
| Achsloch Passung | H7 |
| Passung Nabennut | JS9 |
| Nabennuthöhe (N2) | 1.8 |
| Nabennutbreite (N1) | 4 |
| Gewicht | 0.248 kg |
