Flanged wheels & flanged rollers

Flanged wheels made of steel, stainless steel or polyamide are part of our standard product range. In addition, on request, we also manufacture flanged wheels made of steel or stainless steel with a vulcanised tread made of polyurethane or Vulkollan®. Our standard dimensions range from 50 mm to 400 mm in diameter. We are happy to produce special sizes and special materials to your individual specifications.

Flanged wheels – precise solutions for rail and conveyor technology
Skip to results list

Filters

70 items

Filter

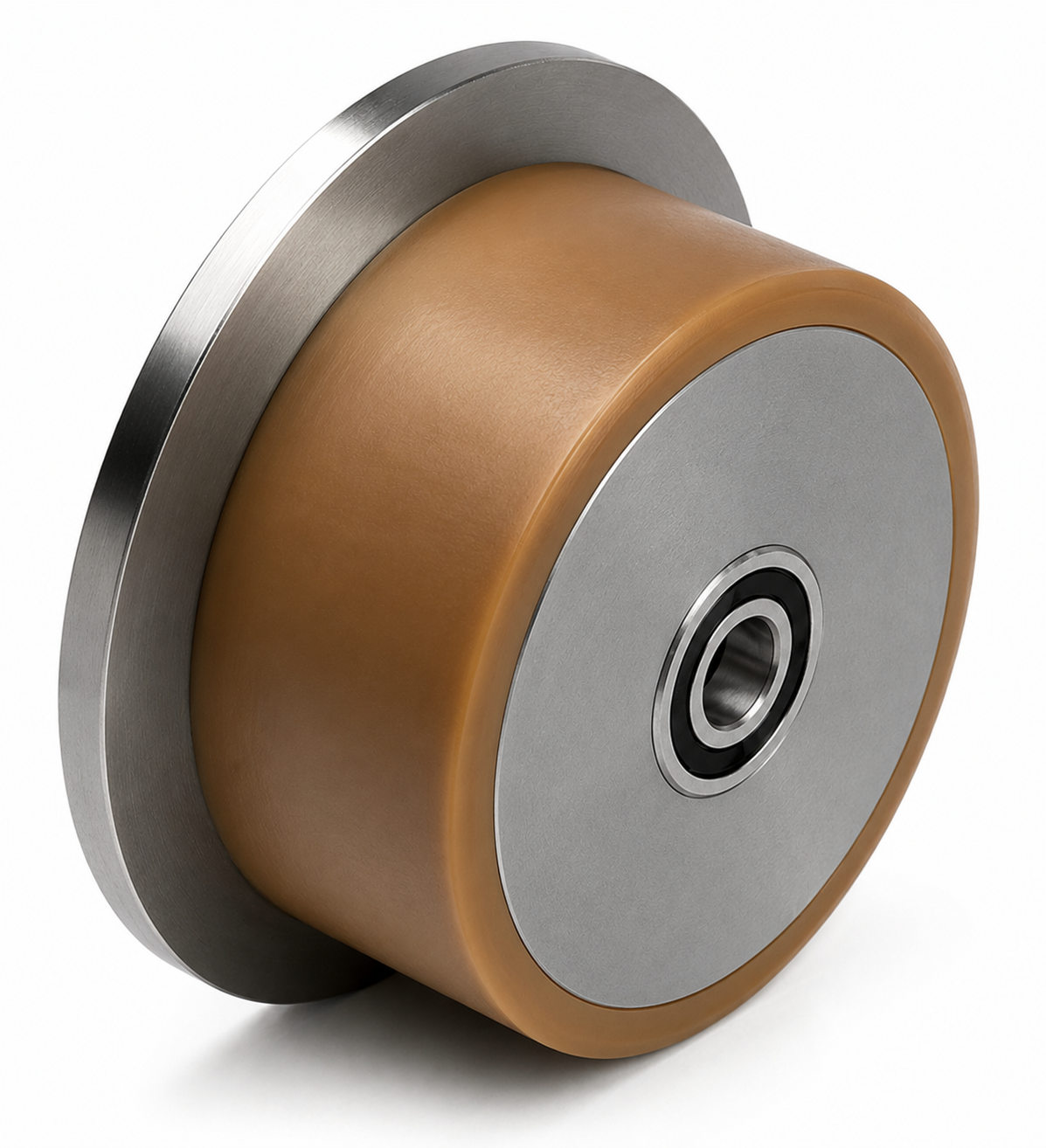

  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 110 mm | tread Ø 80 mm

    Durchmesser 80 mm
    Tragkraft 800 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 110 mm | tread Ø 80 mm
    156,66 €
    incl. VAT
    124,83 €
    excl. VAT

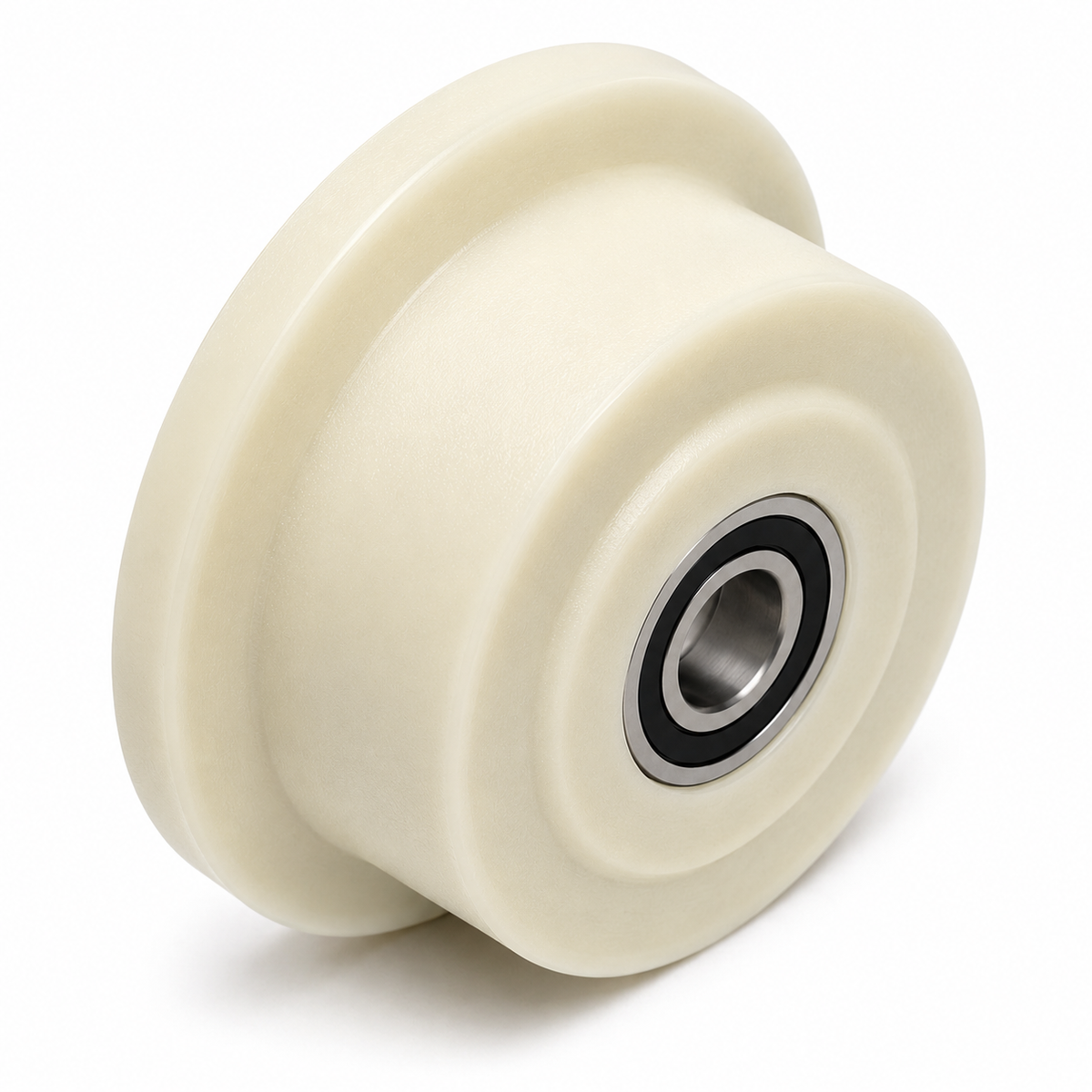

  • Flanged wheel type 2505K made of polyamide 6G with ball bearing, wear-resistant industrial wheel for track-guided conveyor technology and guide systems

    Flanged wheel | 150 x 55 mm | polyamide 6G | tread 3°

    Durchmesser 150 mm
    Tragkraft 1000 kg

    Flanged wheel | 150 x 55 mm | polyamide 6G | tread 3°
    159,60 €
    incl. VAT
    127,17 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 60 mm | tread Ø 50 mm

    Durchmesser 50 mm
    Tragkraft 500 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 60 mm | tread Ø 50 mm
    172,02 €
    incl. VAT
    137,07 €
    excl. VAT
    Request product
  • Flanged wheel type 2505K made of polyamide 6G with ball bearing, wear-resistant industrial wheel for track-guided conveyor technology and guide systems

    Flanged wheel | 150 x 80 mm | Polyamide 6G | ball bearing or hub groove

    Durchmesser 150 mm
    Tragkraft 1500 kg

    Flanged wheel | 150 x 80 mm | Polyamide 6G | ball bearing or hub groove
    173,24 €
    incl. VAT
    138,04 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 75 mm | tread Ø 60 mm

    Durchmesser 60 mm
    Tragkraft 500 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 75 mm | tread Ø 60 mm
    187,52 €
    incl. VAT
    149,42 €
    excl. VAT
    Request product
  • Flanged wheel 200 x 53 mm made of beige plastic with ball bearing

    Flanged wheel | 200 x 53 mm | Polyamide 6G | slim design | tread 3°

    Durchmesser 200 mm
    Tragkraft 1300 kg

    Flanged wheel | 200 x 53 mm | Polyamide 6G | slim design | tread 3°
    200,52 €
    incl. VAT
    159,78 €
    excl. VAT

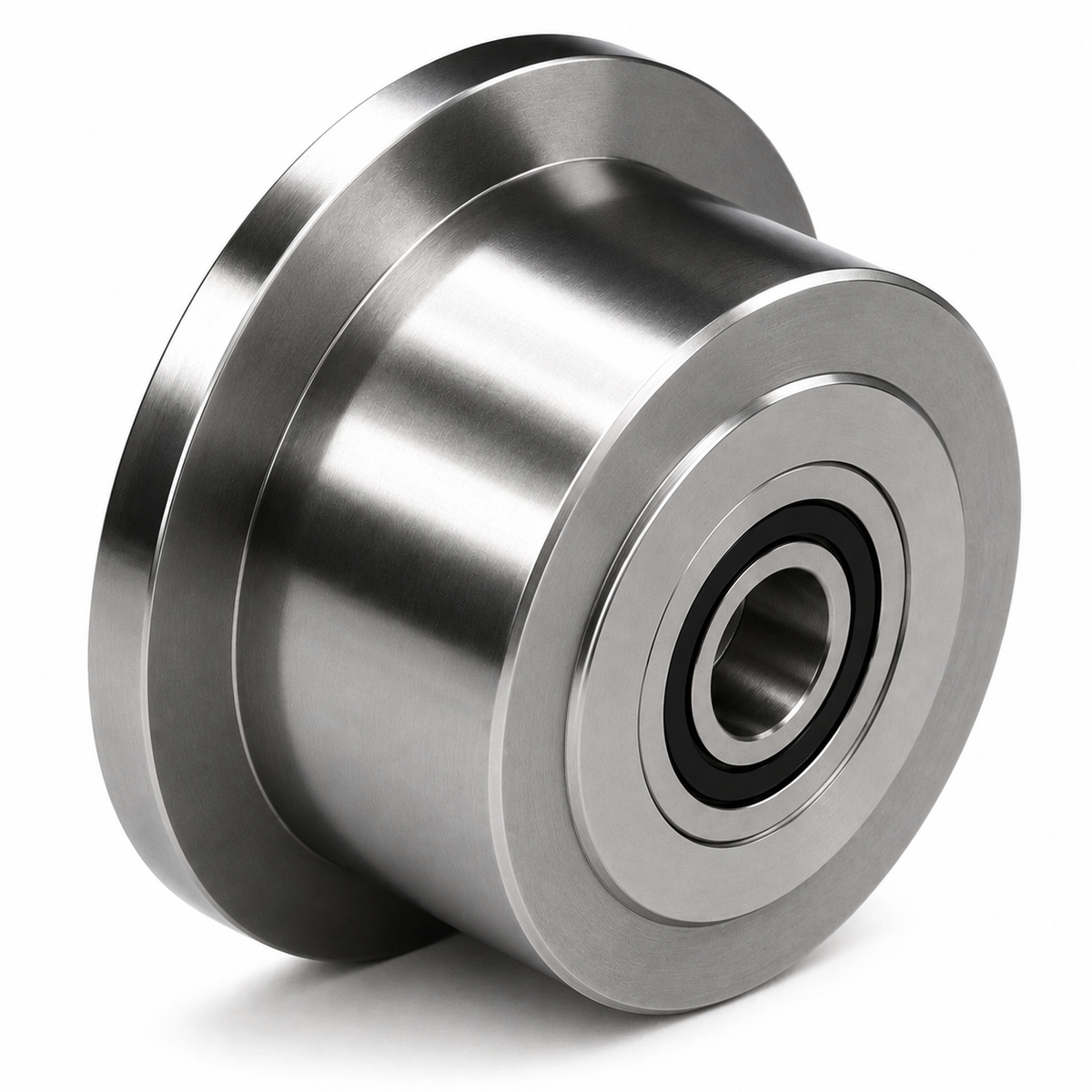

  • Flanged wheel made of steel S355 or stainless steel 1.4301 with ball bearing or hub groove

    Flanged wheel | S355 / 1.4301 | flange Ø: 180 mm | wheel Ø: 150 mm | ball bearing or hub groove

    Durchmesser 150 mm
    Tragkraft 2000 kg

    Flanged wheel | S355 / 1.4301 | flange Ø: 180 mm | wheel Ø: 150 mm | ball bearing or hub groove
    206,26 €
    incl. VAT
    164,35 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 100 mm | tread Ø 75 mm

    Durchmesser 75 mm
    Tragkraft 800 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 100 mm | tread Ø 75 mm
    211,24 €
    incl. VAT
    168,32 €
    excl. VAT
    Request product
  • Flanged wheel 200 x 80 mm made of polyamide 6G

    Flanged wheel | 200 x 80 mm | polyamide 6G | high load capacity with low dead weight

    Durchmesser 200 mm
    Tragkraft 2500 kg

    Flanged wheel | 200 x 80 mm | polyamide 6G | high load capacity with low dead weight
    214,17 €
    incl. VAT
    170,65 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 150 mm | tread Ø 125 mm

    Durchmesser 125 mm
    Tragkraft 1500 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 150 mm | tread Ø 125 mm
    219,95 €
    incl. VAT
    175,26 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 125 mm | tread Ø 100 mm

    Durchmesser 100 mm
    Tragkraft 1200 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 125 mm | tread Ø 100 mm
    227,07 €
    incl. VAT
    180,93 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 110 mm | tread Ø 80 mm

    Durchmesser 80 mm
    Tragkraft 800 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 110 mm | tread Ø 80 mm
    235,00 €
    incl. VAT
    187,25 €
    excl. VAT
    Request product
  • Flanged wheel made of steel S355 or stainless steel 1.4301 with ball bearing or hub groove

    Flanged wheel | S355 / 1.4301 | flange Ø: 240 mm | wheel Ø: 200 mm | ball bearing or hub groove

    Durchmesser 200 mm
    Tragkraft 4500 kg

    Flanged wheel | S355 / 1.4301 | flange Ø: 240 mm | wheel Ø: 200 mm | ball bearing or hub groove
    271,73 €
    incl. VAT
    216,52 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 180 mm | tread Ø 150 mm

    Durchmesser 150 mm
    Tragkraft 2000 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 180 mm | tread Ø 150 mm
    299,08 €
    incl. VAT
    238,31 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 150 mm | tread Ø 125 mm

    Durchmesser 125 mm
    Tragkraft 1500 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 150 mm | tread Ø 125 mm
    329,93 €
    incl. VAT
    262,89 €
    excl. VAT
    Request product
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 125 mm | tread Ø 100 mm

    Durchmesser 100 mm
    Tragkraft 1200 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 125 mm | tread Ø 100 mm
    340,61 €
    incl. VAT
    271,40 €
    excl. VAT
    Request product
  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 210 mm | tread Ø 175 mm

    Durchmesser 175 mm
    Tragkraft 2250 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 210 mm | tread Ø 175 mm
    345,75 €
    incl. VAT
    275,50 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 240 mm | tread Ø 200 mm

    Durchmesser 200 mm
    Tragkraft 2500 kg

    Flanged wheel with PU or Vulkollan on steel core S355 | flange Ø 240 mm | tread Ø 200 mm
    394,01 €
    incl. VAT
    313,95 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 180 mm | tread Ø 150 mm

    Durchmesser 150 mm
    Tragkraft 2000 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 180 mm | tread Ø 150 mm
    448,61 €
    incl. VAT
    357,46 €
    excl. VAT
    Request product
  • Flanged wheel 250 x 65 mm made of polyamide 6G

    Flanged wheel | 250 x 65 mm | polyamide 6G | ball bearing | hub groove | tread 3°

    Durchmesser 250 mm
    Tragkraft 2100 kg

    Flanged wheel | 250 x 65 mm | polyamide 6G | ball bearing | hub groove | tread 3°
    452,41 €
    incl. VAT
    360,49 €
    excl. VAT
  • Flanged wheel made of steel S355 or stainless steel 1.4301 with ball bearing or hub groove

    Flanged wheel | S355 / 1.4301 | flange Ø: 290 mm | wheel Ø: 250 mm | ball bearing or hub groove

    Durchmesser 250 mm
    Tragkraft 5600 kg

    Flanged wheel | S355 / 1.4301 | flange Ø: 290 mm | wheel Ø: 250 mm | ball bearing or hub groove
    457,26 €
    incl. VAT
    364,35 €
    excl. VAT

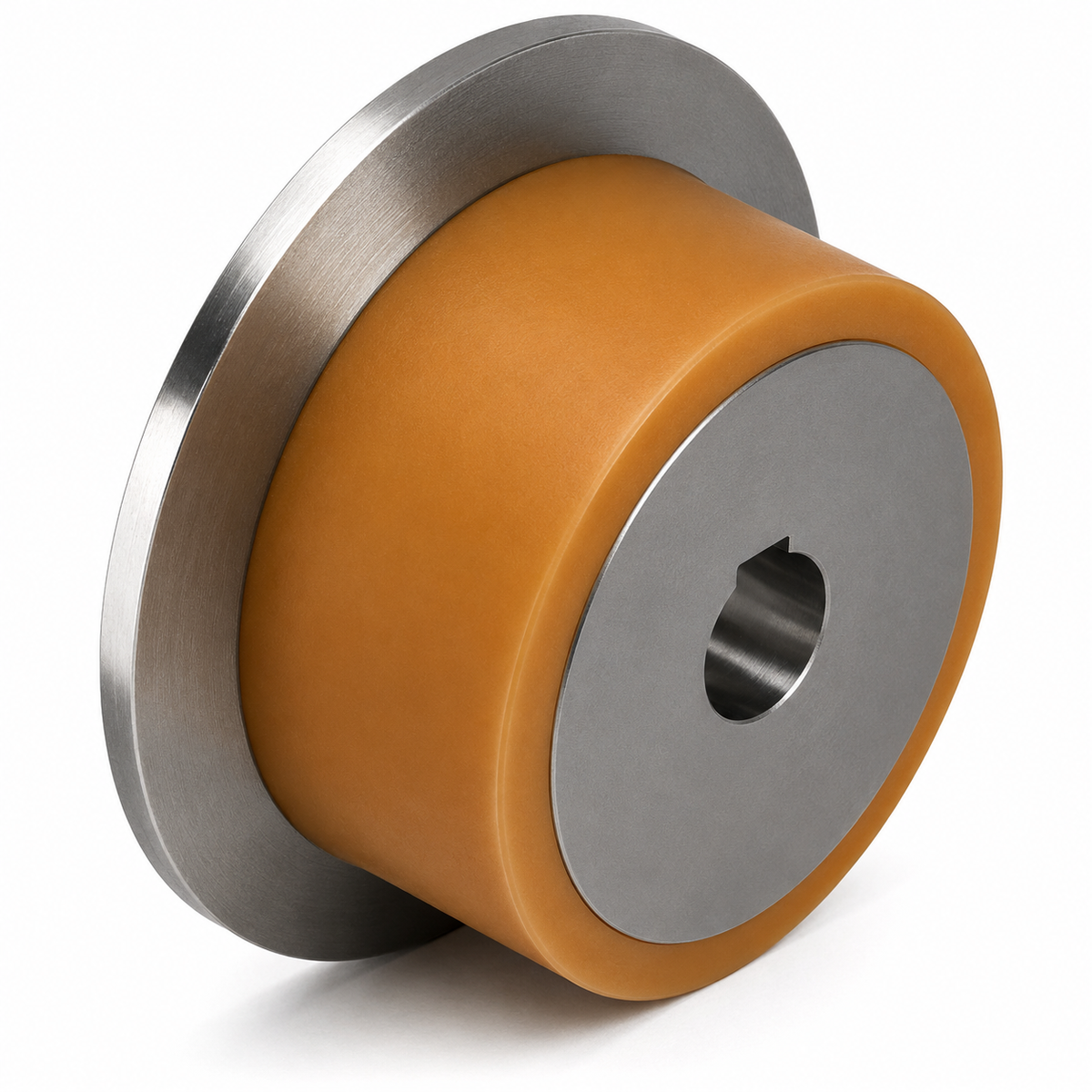

  • Flanged drive wheel with polyurethane tread and hub keyway on steel core

    Flanged drive wheel with hub groove | PU or Vulkollan on steel core S355 | flange Ø 240 mm | running Ø 200 mm

    Durchmesser 200 mm
    Tragkraft 2500 kg

    Flanged drive wheel with hub groove | PU or Vulkollan on steel core S355 | flange Ø 240 mm | running Ø 200 mm
    472,81 €
    incl. VAT
    376,74 €
    excl. VAT
  • Flanged wheel type 2505K made of polyamide 6G with ball bearing, wear-resistant industrial wheel for track-guided conveyor technology and guide systems

    Flanged wheel | 250 x 80 mm | polyamide 6G | ball bearing | hub groove | tread 3°

    Durchmesser 250 mm
    Tragkraft 3000 kg

    Flanged wheel | 250 x 80 mm | polyamide 6G | ball bearing | hub groove | tread 3°
    480,55 €
    incl. VAT
    382,91 €
    excl. VAT
  • Flanged wheel with polyurethane tread on steel core
    On request

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 210 mm | tread Ø 175 mm

    Durchmesser 175 mm
    Tragkraft 2250 kg

    Flanged wheel with PU or Vulkollan on stainless steel core V2A | flange Ø 210 mm | tread Ø 175 mm
    518,63 €
    incl. VAT
    413,25 €
    excl. VAT
    Request product
Frequently asked questions

What are flanged wheels and flanged rollers used for?
The flange guides the wheel safely on rails, profiles or guide rails and prevents sideways run-out. Typical applications include sliding gates, warehouse handling equipment and rail-guided transport systems.

Which materials are flanged wheels available in?
As standard, we manufacture in steel, stainless steel or polyamide. On request, versions with a vulcanised tread of polyurethane or Vulkollan® are also available.

When is a vulcanised tread useful?
An elastomer tread reduces running noise, protects the rail and improves traction. Pure metal wheels, by contrast, have the advantage with very high loads and harsh conditions.
