Guide roller | 125×25 mm | Vulkollan® | Bore Ø15 mm | 260 kg | Ball bearing

guide roller 125×25 mm Vulkollan® Kugellager 260 kg bore Ø15 mm

111,95 €

incl. VAT

89,20 €

excl. VAT

Production or assembly

approx. 3–7 days

The item will be assembled after receipt of your order.

Free shipping from €99 net
Delivery in 1–3 working days
Personal advice: +49 2307 9644987
Specialist retailer online since 2004

Technical data

Wheel diameter (D)

125mm

Wheel width (B)

25.0mm

Load capacity

260kg

Hub length (C)

25.0mm

Axle hole (d1)

15.0mm

Non-marking

Yes

Non-staining

Yes

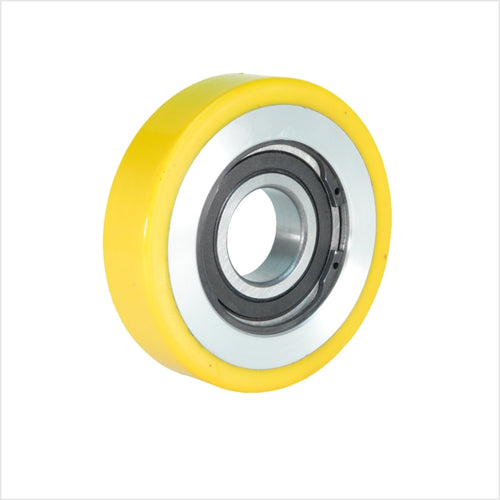

Guide roller 125×25 mm – Vulkollan® 92° Shore A / steel body

The 125×25 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearings) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 260 kg, bore Ø15 mm, hub length 25 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.

Technical features

Outer diameter: 125 mm
Wheel width: 25 mm
Hub length: 25 mm
Bore: Ø15 mm
Load capacity: 260 kg
Material: Vulkollan® 92° Shore A / steel body
Bearing: Ball bearing in the middle, secured with circlip

Areas of application

Guide rollers in conveyor and transport systems
Special machines, fixtures, and linear guides
Warehouse and intralogistics systems
Gravity conveyor lines and assembly lines

Notes on selection

Please check the axle diameter and axial installation situation before ordering. The circlip is included in the scope of delivery.
